60R1 Rail
Product Overview

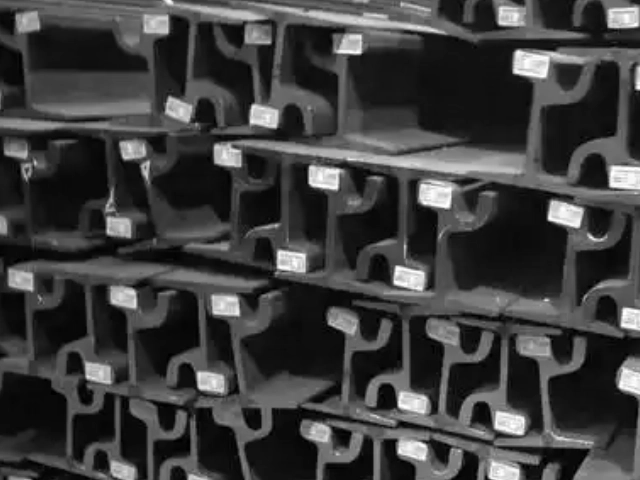

60R1 Grooved Rail (also known as Ri60 / Ri60‑R10) is a heavy‑duty tram/girder rail engineered for embedded track installations in urban environments. Combining high material strength, precise geometry and compatibility with ENtrack standards, it delivers low‑noise, long‑life performance for tramways, light rail and mixed‑traffic streets.
Key Features
Rail Height: 180 mm|
Base Width: 180mm |
Head Width: 113mm |
Web Thickness: 12mm
Weight: 60.59 kg/m
Standards: EN 14811:2006
Material Properties
U75V Grade:
450–550 MPa yield strength, 880–1000 MPa tensile strength, and 10% elongation.
Length: Usually 25 m/ea. Cut to order.
MOQ: 2000t
Key Benefits
Durability & fatigue resistance — designed to withstand heavy axle loads and repeated tram passage.
Low lifecycle cost — longer service intervals and straightforward maintenance reduce whole‑life expenses.
Urban‑friendly — groove profile allows seamless paving integration and reduces trip hazards.
Versatile supply — offered in standard lengths and cut‑to‑order sizes, with optional coatings and rail‑fastening compatibility.
Customisation & Options
Custom groove widths and head treatments for non‑standard wheelsets.
Cut‑to‑length supply, pre‑drilled holes and notches.
Heat treatment options for improved wear resistance.
Coatings for coastal or corrosive environments.
Typical Applications
Street tramways and light rail
City centre shared‑space corridors
Heritage tram restorations and modern retrofits
Intermodal junctions where pavement and rail meet
Why choose 60R1？
Engineered for embedded track: groove accommodates wheel flange while enabling flush pavement finish.
Robust section: excellent load distribution and wear resistance for high‑traffic urban corridors.
EN‑compliant manufacturing and traceable heat‑treated rail steels available.
