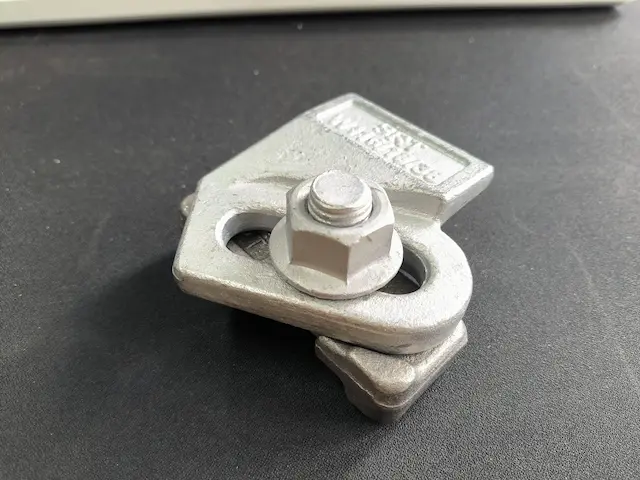

W116 Welded Rail Clip
Product Overview

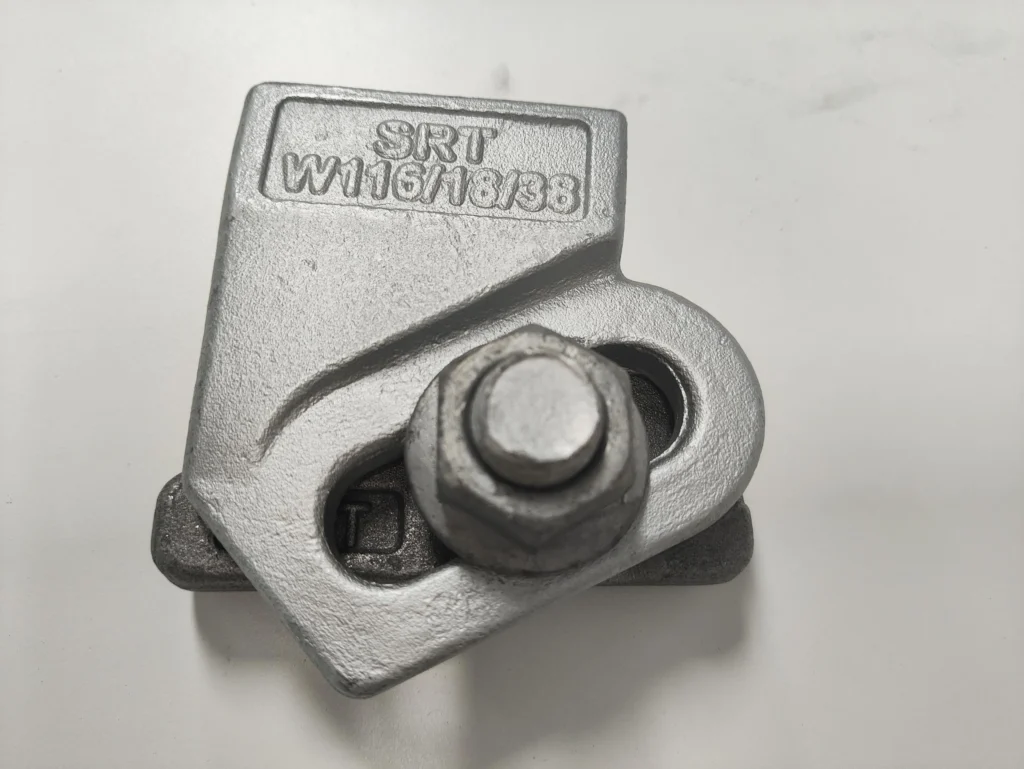

W116/18/38 Welded Rail Clip is a robust solution designed to secure medium to heavy-weight rails in demanding industrial environments. With a 130kN (13.3 tonnes) horizontal force capacity, this clip is ideal for cranes, port machinery, and material handling systems. Its 18mm horizontal adjustment range and low-profile design ensure compatibility with guide roller-equipped cranes, while the self-tightening mechanism guarantees long-term stability under high vibration and load.
Key Features
Permanent Welded Fixation
Full-perimeter welding (except bolt area) with 5mm throat thickness ensures a rigid connection to support structures, eliminating maintenance risks from loose components. Weldable base constructed from high-strength steel for superior load distribution.
Self-Tightening Mechanism
Two-piece design locks securely when the Grade 8.8 bolt is tightened to 200 Nm torque, maintaining consistent clamping force over time.
Vibration & Noise Control
Integral vulcanized rubber blockreduces wear and noise: 14mm thicknessfor rails with pads (S model). 21mm thicknessfor rails without pads (H model).
Wide Rail Compatibility
Suitable for 8–89 kg/m railsacross global standards:
Chinese: P38, P43, QU70–QU100
European: A45–A75, UIC 54–UIC 60
Industrial: S20–S49, MRS 54
Japanese: JIS37
American: ASCE 80–ASCE 85
Corrosion-Resistant Design
Galvanized components and weldable steel resist corrosion in coastal, humid, or industrial environments.
| Parameter | Value |
|---|---|
| Model | W116/18/38 |
| Max Side Load | 130kN (13.3 tonnes) |
| Horizontal Adjustment | 18 mm |
| Bolt Specification | M16 Grade 8.8, Captive Bolt |
| Weight per Clip | 0.87 kg |
| Weld Type | 5mm Throat Thickness Fillet Weld |
| Recommended Electrodes | AWS E7018/E7028 (Low Hydrogen) |
| Minimum Assembly Width | Rail Width (F) + 100 mm |
| Components | Flange Nut, Forged Steel Clip, Vulcanized Rubber Block, Weldable Base |
Compatible Rail Types
| Rail Standard | Rail Weight (kg/m) | Clip with Pad (S) | Clip without Pad (H) |
| Chinese P38 | 38.73 | W116/18/38 (S) | W116/18/38 (H) |
| Chinese QU80 | 63.69 | W116/18/38 (S) | W116/18/38 (H) |
| European A65 | 43.1 | W116/18/38 (S) | W116/18/38 (H) |
| Industrial S41 | 41.4 | W116/18/38 (S) | W116/18/38 (H) |
| American ASCE 80 | 39.8 | W116/18/38 (S) | W116/18/38 (H) |
Why Choose the W116 Welded Rail Clip?
Balanced Performance: 130kN capacity suits medium-heavy loads without overengineering.
Wide Adjustment Range: 18mm horizontal adjustment simplifies alignment in complex setups.
Cost-Effective Solution: Lightweight design (0.87 kg) reduces material and installation costs.
Technical Support: GloryRail provides custom welding plans.
