CR73 Crane Rail

The JIS CR73 crane rail is a high-strength, precision-engineered rail designed for medium-to-heavy-duty overhead cranes, gantry cranes, and material handling systems in industrial and port environments. Manufactured to JIS E 1101 and JIS E 1103 standards, it combines robust load-bearing capacity with superior wear resistance, ensuring reliable performance in challenging conditions.

CR73 Rail Key features

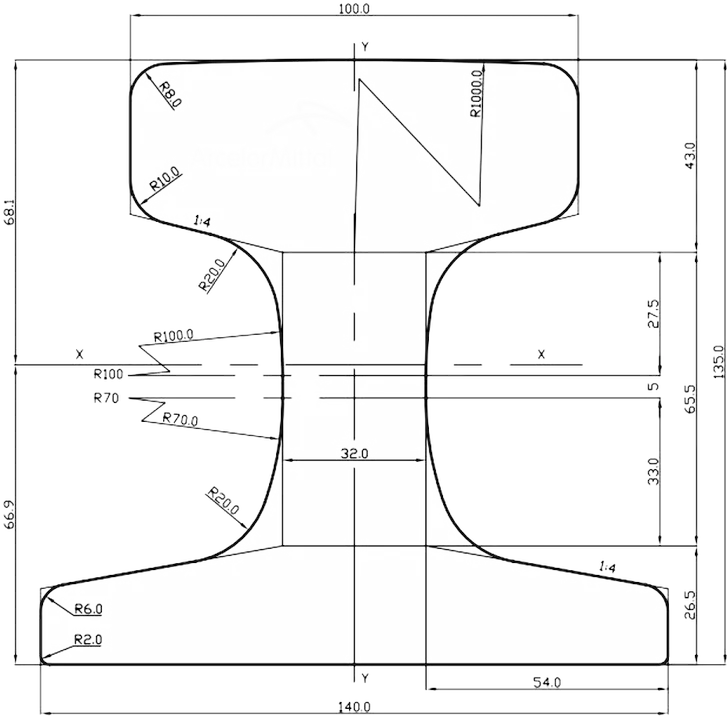

Rail height: 135mm ; base width: 140mm
Web thickness: 32mm; head width: 100mm.
Material:
U71Mn High-Strength Rail Steel (default): Tensile strength ≥880MPa, hardness ≥260HBW, ideal for heavy freight and high-speed applications.

Key Specifications:

Profile: Symmetrical wide-flange design (73.3kg/m)

Length:Standard: 10/12 m; custom lengths available upon request.

Heavy-Duty Load Capacity
U71Mn steel structure withstands dynamic loads and frequent start-stop operations, minimizing deformation.
Enhanced Wear Resistance
As-rolled hardness of 260–300 HBW reduces rail head wear compared to conventional carbon steel.
Microalloyed composition (0.65–0.76% C, 1.10–1.40% Mn) ensures resistance to surface fatigue and abrasion.
Precision Engineering
Tight dimensional tolerances (±0.5 mm for height/width; ±0.3 mm for head profile) ensure seamless alignment with crane wheels and fasteners.
Straightness tolerance: ≤2 mm/m , reducing vibration and noise during operation.
Corrosion Protection
Optional hot-dip galvanization or epoxy coatings for outdoor applications in marine or high-humidity environments.

CR73 Crane Rail Material Properties

Grade	Mechanical Property						Chemical Composition (%)
	Yield Strength		Tensile Strength		Elongation	Hardness	C	Si	Mn	S	P	Cr	Ni	Cu
	MPa	kg/mm²	MPa	kg/mm²	Min.	HB	C	Si	Mn				≤	≤
U71Mn	-	-	≥880	-	9%	-	0.65-0.76	0.15-0.35	1.10-1.40	0.03	0.03	0.25	0.25	0.25

Steel Grade U71Mn

Mechanical Property

Yield Strength (MPa) -

Yield Strength (kg/mm²) -

Tensile Strength (MPa) ≥880

Tensile Strength (kg/mm²) -

Elongation (Min.) 9%

Hardness (HB) -

Chemical Composition (%)

Carbon (C) 0.65-0.76

Silicon (Si) 0.15-0.35

Manganese (Mn) 1.10-1.40

Sulfur (S) 0.03

Phosphorus (P) 0.03

Chromium (Cr) 0.25

Nickel (Ni) ≤ 0.25

Copper (Cu) ≤ 0.25

Applications

Ports & Logistics
Container cranes in international ports (e.g., Yokohama) .
Automated storage and retrieval systems (AS/RS) in e-commerce fulfillment centers.
Heavy Industry
Overhead cranes in steel mills and foundries handling molten metal.
Gantry cranes in shipyards for vessel assembly and repair.
Mining & Construction
Underground mining transport systems with moderate load requirements.
Mobile cranes in construction sites for material lifting.
Aerospace & Automotive
Assembly line cranes in aircraft hangars and automotive manufacturing plants.

Key Advantage

Precision Control ±0.1mm
High-Quality Carbon Steel
15 Years of Professional Manufacturing Experience
