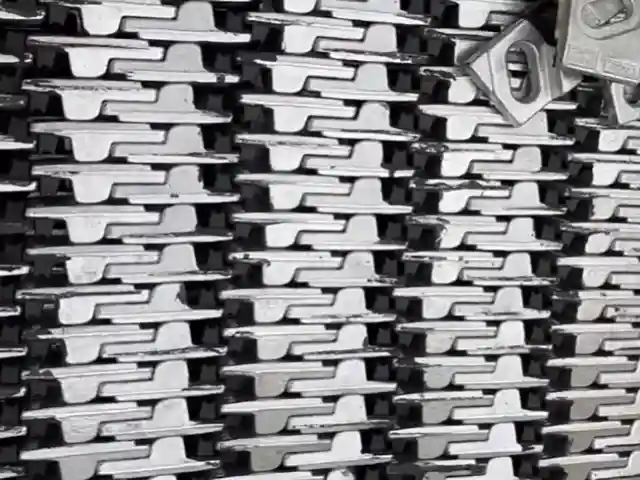

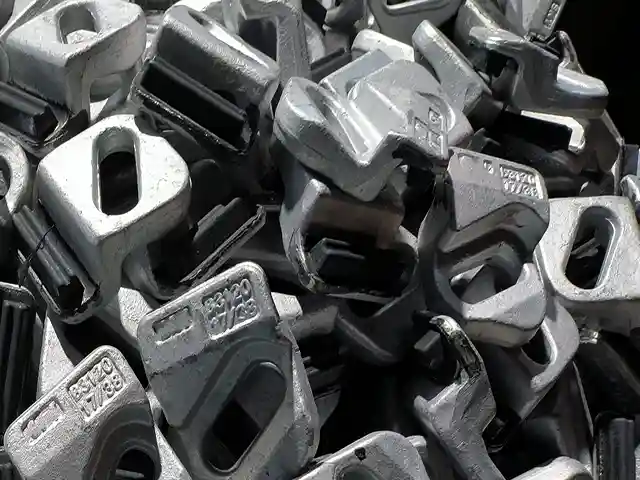

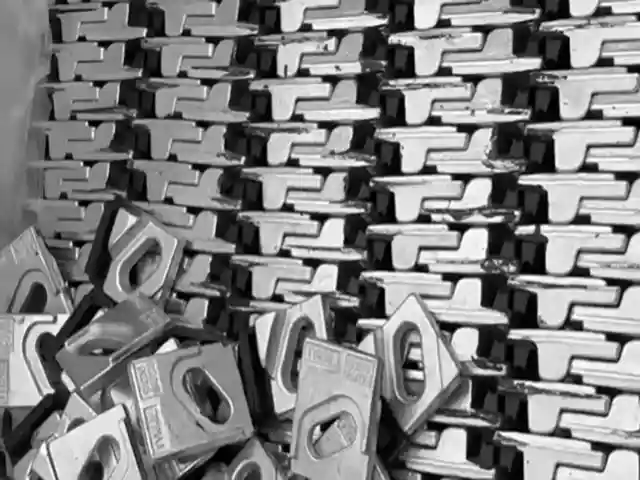

Bolted Rail Clips
Overview
GloryRail’s bolted rail clips are trusted worldwide for their durability, precision, and ability to secure rails in the most arduous applications. Designed for ports, shipyards, mining operations, and heavy machinery, our clips offer robust fixation under high static and dynamic loads. With models ranging from 38kN to 390kN horizontal force capacity, we provide tailored solutions for light to ultra-heavy rail systems.
Key Features & Benefits
Unmatched Strength & Stability
Constructed from forged steel with Grade 8.8/10.9 bolts for high tensile strength (200–750Nm torque resistance).
Vulcanized rubber blocks reduce vibration, noise, and wear, ensuring long-term rail integrity.
Adjustable Design for Precision Alignment
Horizontal adjustment ranges from 13mm to 20mm, accommodating rail misalignments during installation or operation.
Low-profile design fits cranes with guide rollers, ideal for space-constrained environments.
Global Compatibility
Compatible with major rail standards: Chinese (P30-P60), Japanese (JIS37-JIS60), European (UIC 54-UIC 60), and more (see compatibility tables below).
Suitable for rails weighing 14kg/m to 150kg/m, including QU70–QU120 and heavy-duty industrial profiles.
Proven Durability
Trusted by global clients for over 20 years, with designs validated in high-corrosion coastal zones and heavy-traffic mining sites.
Corrosion-resistant coatings (galvanization) and precision machining eInstallation & Maintenance
Flexible Installation
Bolts can be inserted from above or below the support structure, with optional welded stud fixation (consult GloryRail for details).
Torque specifications:
- Grade 8.8 bolts: 200–600Nm (depending on model).
- Grade 10.9 bolts: 300–750Nm (higher load capacity).
Routine Maintenance
Inspect annually for bolt tightness and rubber pad wear.
Replace worn components to maintain clamping force and vibration control.
Lubricate bolts in high-corrosion environments to prevent seizing.
Product Range & Technical Specifications
| Model | Max Side Load | Horizontal Adjustment | Bolt Size | Weight (kg) | Compatible Rails (Example) |
| 3116/13/36> | 38kN (3.9t) | 13mm | M16×73 | 0.41 | P30, JIS37, ASCE 60 |
| 3120/17/38> | 75kN (7.6t) | 17mm | M20×90 | 0.68 | QU70, UIC 54, S41 |
| 3124/20/42> | 125kN (12.7t) | 20mm | M24×85 | 1.25 | QU100, P60, MRS87B |
| 3220/17/38> | 150kN (15.2t) | 17mm | M20×90 | 1.56 | QU80, A100, ISCR80 |
| 3224/20/44> | 390kN (39.2t) | 20mm | M24×80 | 2.5 | QU120, A150, ISCR140 |
Why choose Gloryrail’s Bolted Rail Clips?
15+ Years of Expertise: Specialized in rail systems for heavy-industry applications.
Global Compliance: Products meet international quality and safety standards.
Custom Solutions: Tailored designs for unique rail configurations and environments.
