ASCE 20 Rail

Product Overview

ASCE 20 Rail is a tee – section rail (20 lb/yd, ≈9.95 kg/m), made to ASCE standards. Supplied in 6m/8m lengths with pre – drilled splice holes, it comes in plain, primed, or painted finishes. Designed for moderate – duty tracks, it balances strength, flexibility, and cost, suiting light cranes, underground mining haulage, and automated monorails.

ASCE 20 Rail drawings
Quick Quote

Core Dimensional Parameters

ParameterASCE 20 Standard Value
Rail Height69.85 mm (2.75 in)
Base Width69.85 mm (2.75 in)
Web Thickness6.35 mm (0.25 in)
Head Width38.1 mm (1.5 in)
Standard Weight20 lb/yd (9.91 kg/m)

Material & Mechanical Characteristics

Steel Grade: 700
  • Balanced carbon-manganese formulation ensures excellent weldability, impact toughness, and moderate wear resistance
  • Meets ASCE material requirements for light-to-medium load rail applications (e.g., industrial yards, light transit, crane runways)

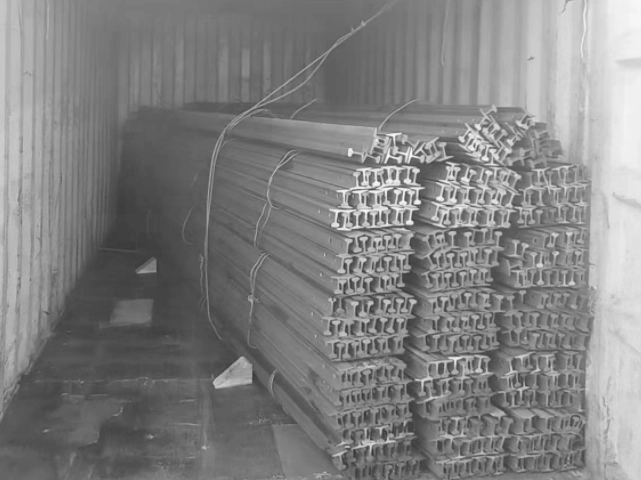

ASCE 20 Rails Supplier

Application

Civil Infrastructure: Bridge stringers, roadway guardrail supports, or drainage system frames.
Building Structures: Secondary members (e.g., purlins, mezzanine joists) in industrial or commercial buildings.
Industrial Use: Bases for machinery, conveyor supports, or lightweight storage racking.
Temporary Works: Shoring towers, formwork beams, or scaffolding components during construction.

Why Choose Us for ASCE 20 Rail?

  • Certified Quality: Compliant with ASTM A1/AREMA/ASCE; Grade 700 steel + full quality reports.
  • Flexible Customization: Custom lengths, finishes (plain/primed/painted), and splice holes.
  • On-Time Delivery: Strategic stock + 98%+ on-time rate via multi-shipping options.
  • Expert Support: Pre-sales guidance + post-sales warranty & troubleshooting.
  • Proven Expertise: Trusted in civil, industrial, and temporary projects globally.
  • Cost-Effective: Competitive pricing with uncompromised durability.
