9kg Rail
Product Overview
Gloryrail strictly adheres to GB/T 11264-2012 Hot-Rolled Light Rails to deliver high-reliability 8.94kg/m light rail solutions worldwide. Manufactured via hot-rolling, this product balances high strength, wear resistance, and cost-effectiveness, suitable for applications in mining, metallurgy, ports, forestry.
Key features:
Precision Dimensions:

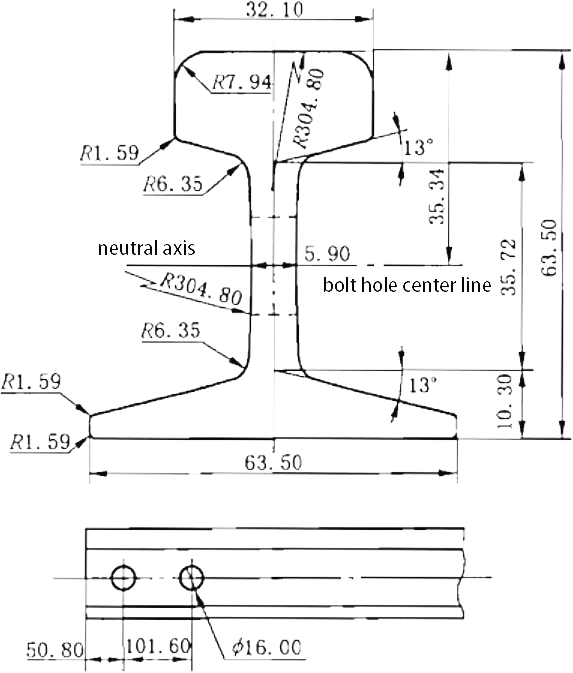

With a standardized profile of 63.5mm (height) × 63.5mm (base width) × 32.1mm (head width) × 5.9mm (web thickness), the rail provides balanced load distribution and stability.
Each 12-meter length theoretical weighs 8.94kg/m, designed for seamless integration into existing infrastructure.
Materials
Q235B Carbon Structural Steel
Composition: C 0.12–0.22%, Si ≤0.30%, Mn 0.30–0.70%, S ≤0.045%, P ≤0.045%.
Advantages: Excellent weldability and formability, ideal for mining, factory tracks, and temporary transport lines.
Cost-Effective: lower cost than 55Q, suitable for budget-sensitive projects.
Advanced Manufacturing
Hot-Rolling Process
Utilizes (walking-beam reheating furnace) and high-precision rolling mills to ensure uniform internal structure and reduce residual stress.
Automated Quality Control
Laser thickness measurement monitors cross-sectional dimensions in real time (accuracy ±0.1mm).
Hardness testing ensures consistency across the rail head, web, and base.
Applications
Mining Transportation: Ideal for underground mine cart tracks.
Metallurgical Industry: Supports crane rails; Q235B for medium-speed transport.
Port Logistics: Lightweight design facilitates manual installation for temporary container gantry tracks, reducing maintenance frequency.
Forestry & Agriculture: Efficient for forest transport and agricultural machinery tracks, minimizing manual laying effort.
Technical Advantages
Cost-Effective Performance
lower cost than UIC-standard light rails while meeting ISO 9001 quality requirements.
Global Compatibility
Dimensions and tolerances align with Asian market standards; customizable fishplates and fasteners fit global rail systems.
Material Composition:
Q235B | Mechanical property | Chemical composition | |||||||||
Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
MPa ≥ | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
235 | 24 | 375-460 | 38-47 | 26% |
| 0.12-0.22 | 0.3 | 0.30-0.70 | 0.045 | 0.045 | |
Why Choose Us?
As a leading Supplier in China, Gloryrail use localized manufacturing expertise to offer competitive pricing and rapid delivery. Our 9kg light Rail is trusted globally for its consistent quality, safety, and we have more than 14 years experience focused on steel rails.
Explore our full range of steel rails solutions and request a quote today. Partner with us for reliable, high-performance rails.
