A150 Rail

Product Overview

DIN A150 crane rail represents the pinnacle of durability and performance in our crane rail lineup. Designed for the most demanding industrial, port, and specialized rail applications, this rail is engineered to meet and exceed stringent German DIN and European EN standards.

Key Features

Precision Dimensions:

150mm (height) × 220mm (base width) × 150mm (head width) × 80mm (web thickness)

Each 12-meter length weighs 150.3kg/m, designed for seamless integration into existing infrastructure.

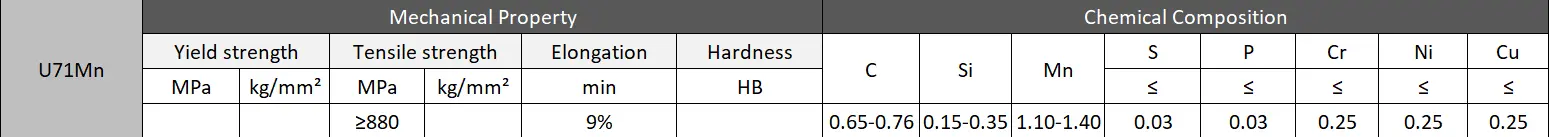

Material Excellence:
Manufactured from superior U71Mn, the A150 rails guarantees exceptional tensile and yield strength, along with high elongation, to resist wear, fatigue, and deformation under extreme loads.

Advanced Manufacturing:
Employing advanced hot-rolling and precision heat treatment processes, each rail is produced with meticulous quality controls and conforms to ISO 9001 and CE certifications.

Specification	Value	Core Benefit
Rail Height	150mm	Peak vertical load-bearing capacity (flagship-level)
Base Width	220mm	Extra-wide contact area for absolute stability
Head Width	150mm	Maximized wheel contact surface, minimizing pressure & wear
Web Thickness	80mm	Ultra-thick web for uncompromising anti-deformation
Weight per Meter	150.3kg/m	Flagship-grade weight for extreme heavy-load demands
Compliance Standard	DIN / EN	Meets global top-tier quality & safety benchmarks
Standard Length	12m	Seamless integration with high-end infrastructure
Customization	Custom lengths + specialized accessories	Tailored to ultra-demanding projects

Technical Advantages

Reduced Maintenance: High-hardness surface treatments significantly lower wear, minimizing operational downtime.

Superior Corrosion Resistance: Optional advanced coatings extend the rail’s service life in corrosive environments.

Custom Configurations: Offered in custom lengths and equipped with additional accessories to meet specific project needs.

Applications

Ultra-High-Capacity Industrial Cranes: For the most demanding operational environments (e.g., heavy machinery manufacturing, super-heavy component transfer).
Maritime & Port Extreme Conditions: Container handling under severe loads, saltwater corrosion, and high-frequency operations.
Specialized Heavy-Duty Rail Systems: Critical projects requiring ultimate strength, longevity, and zero failure tolerance.

FAQs

Q: Is international logistics supported?

A: Yes. Mature global logistics network (sea/land/air) with heavy-duty anti-corrosion/wear packaging, ensuring safe on-time delivery worldwide.

Q: What accessories are available for one-stop procurement?

A: Matching fishplates, high-grade bolts/nuts, rail clamps, rubber pads, and insulating materials (if needed)—customizable to project specs.

Q: What welding methods are recommended for A150 rails?

A: Flash-butt welding (for high-strength permanent joints) or aluminothermic welding (for on-site installation); we provide ISO-certified welding procedures.
