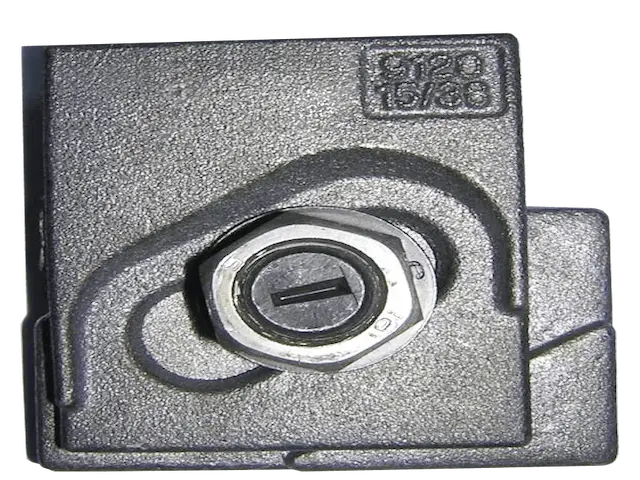

9120 Welded Rail Clip
Product Overview
9120/15/38 Welded Rail Clip is a premium solution designed to secure heavy-weight rails in demanding industrial environments. With a 120kN (12.2 tonnes) horizontal force capacity, this clip is ideal for cranes, port machinery, and heavy-duty transport systems. Its 15mm horizontal adjustment range and low-profile design ensure precise alignment with guide roller-equipped cranes, while the self-tightening mechanism guarantees long-term stability in high-vibration applications.
Installation Instructions
Welding Procedure
Weld the clip base to supports with a 4mm throat thickness fillet weld using low-hydrogen electrodes.
Omit welding on the side parallel to the rail to allow for thermal expansion.
Bolt Tightening
Insert M20 captive bolt and tighten to 350 Nm torque to activate self-locking.
Adjust rail position within 15mm range before finalizing welds.
Quality Check
Inspect welds for full penetration and compliance with ISO 3834 standards.
Maintenance Guidelines
Annual Inspection: Check bolt tightness, rubber pad wear, and weld corrosion.
Rubber Pad Replacement: Replace every 5–7 years or at signs of degradation (cracking, compression set).
Corrosion Protection: Apply anti-rust coating to welds in coastal/humid environments.
Applications
Ports & Terminals: Heavy gantry cranes (e.g., QU80, QU120 rails).
Steel Mills & Heavy Industry: Rail-mounted furnaces and material handlers (A120, MRS125 rails).
Mining & Quarries: High-load haul rails (GCR183, ISCR120 rails).
Shipyards: Marine cranes and rail systems requiring permanent fixation.
| Parameter | Value |
| Model | 9120/15/38 |
| Max Side Load | 120kN (12.2 tonnes) |
| Horizontal Adjustment | 15 mm |
| Bolt Spec | M20 Grade 8.8, Captive Bolt |
| Weight | 1.58 kg |
| Weld Type | 4mm Throat Thickness Fillet Weld |
| Recommended Electrodes | AWS E7018/E7028 (Low Hydrogen) |
| Minimum Assembly Width | Rail Width (F) + 160 mm |
| Components | Flange nut,Forging steel clip,Vulcanized rubber block, Weldable base, M20 Captive bolt |
Key Features
Permanent Welded Fixation
Full-perimeter welding (except rail-parallel side) ensures rigid connection to supports, eliminating maintenance risks from loose components.
Weldable base constructed from high-strength steel for superior load distribution.
Self-Tightening Mechanism
Two-piece design locks securely when the Grade 8.8 bolt is tightened to 350 Nm torque, maintaining consistent clamping force over time.
Vibration & Noise Control
Integral vulcanized rubber block reduces wear and noise:
Optimized for heavy rails in high-traffic zones (e.g., steel mills, ports).
Wide Rail Compatibility
Suitable for 50–183 kg/m rails across global standards:
European: A100, A120, A150
Chinese: QU70, QU80, QU120
Industrial: MRS67, MRS125, GCR183
Japanese: JIS50, JIS60
Corrosion-Resistant Design
Galvanized finish and weldable steel components withstand harsh environments (coastal, mining, chemical industries).
Compatible Rail Types
| Rail Standard | Rail Weight (kg/m) | Clip Reference |
| European A100 | 74.3 | 9120/15/38 |
| European A150 | 150.3 | 9120/15/38 |
| Chinese QU80 | 63.69 | 9120/15/38 |
| Industrial MRS125 | 125 | 9120/15/38 |
| Japanese JIS60 | 60.8 | 9120/15/38 |
| Industrial GCR183 | 183.06 | 9120/15/38 |
