Qu Crane Rail Supplier – Customized for Overhead Cranes
Qu crane rail refers to heavy-duty, hot-rolled crane rails complying with YB/T 5055-2014, designed for industrial and port applications with load capacities up to 500 tons, featuring flat-bottomed profiles (e.g., QU70, QU100), high-strength materials U71Mn (880 MPa tensile), and compatibility with Chinese crane systems while offering cost-effective alternatives to DIN 536 or EN 13674-1 standards.
Product Overview
YB Crane Rails are precision-engineered steel tracks designed to meet the rigorous demands of overhead cranes, gantry systems, and heavy-duty industrial applications. Compliant with China’s YB/T 5055-2014 standard, these rails combine durability, load-bearing capacity, and safety to ensure seamless operations in ports, manufacturing facilities, and logistics hubs.
Core Features & Advantages
Material Excellence：
Constructed from U71Mn alloy steel (0.65–0.77% carbon, 1.10–1.40% manganese), offering high tensile strength (≥900 MPa) and superior wear resistance.Engineered to withstand dynamic loads, impact forces, and extreme operational conditions.
Design Innovations：
Flat-bottomed profile ensures stable installation and reduces stress concentration.Thickened web and widened base enhance load distribution, supporting capacities up to 150+ tons. Precision manufacturing guarantees straightness (<1.5 mm/m) and dimensional accuracy for smooth crane movement.
Model Variants

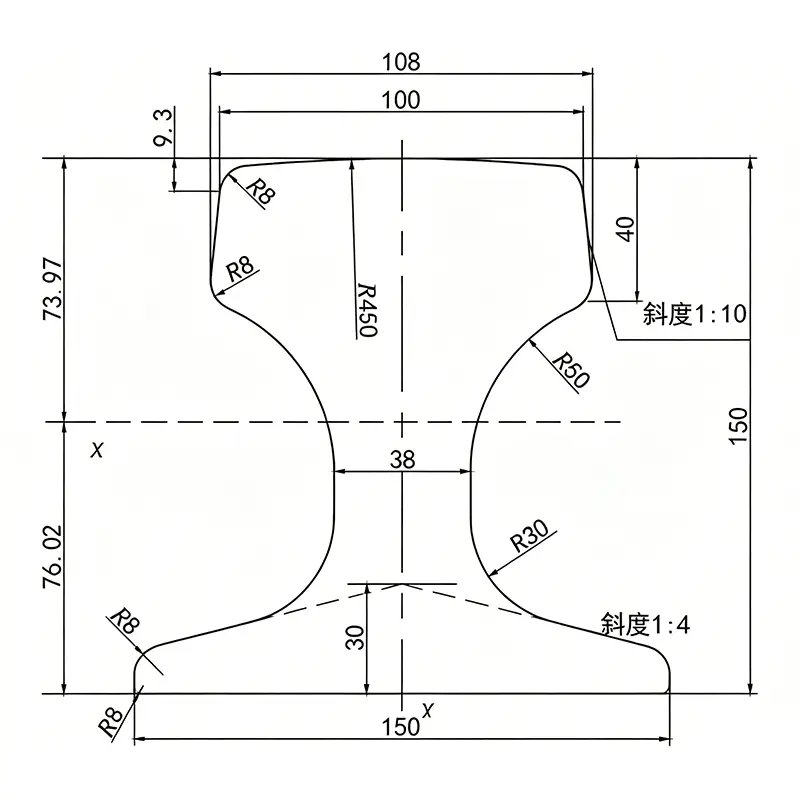

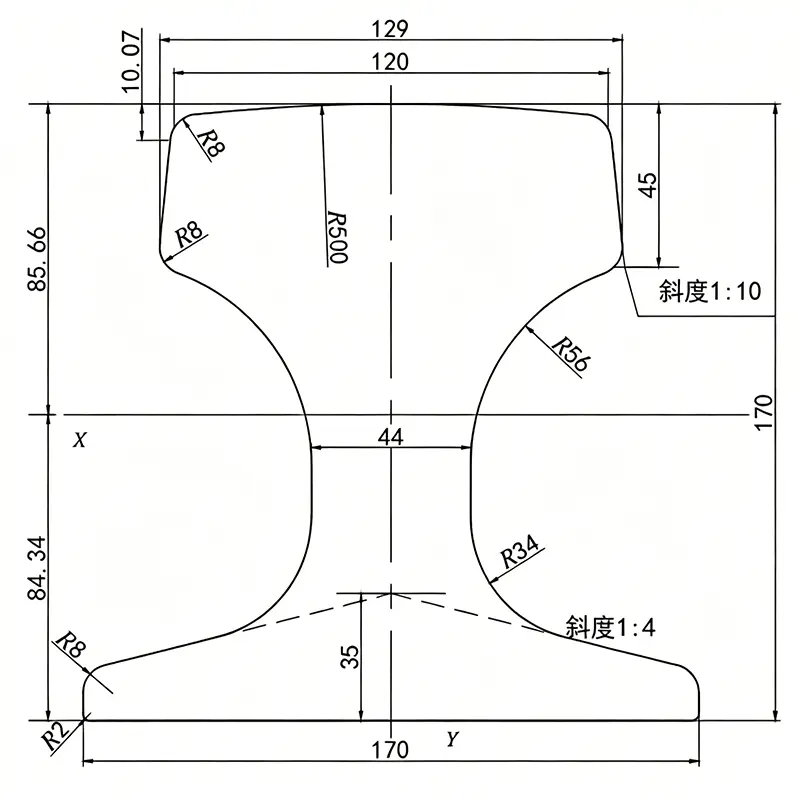

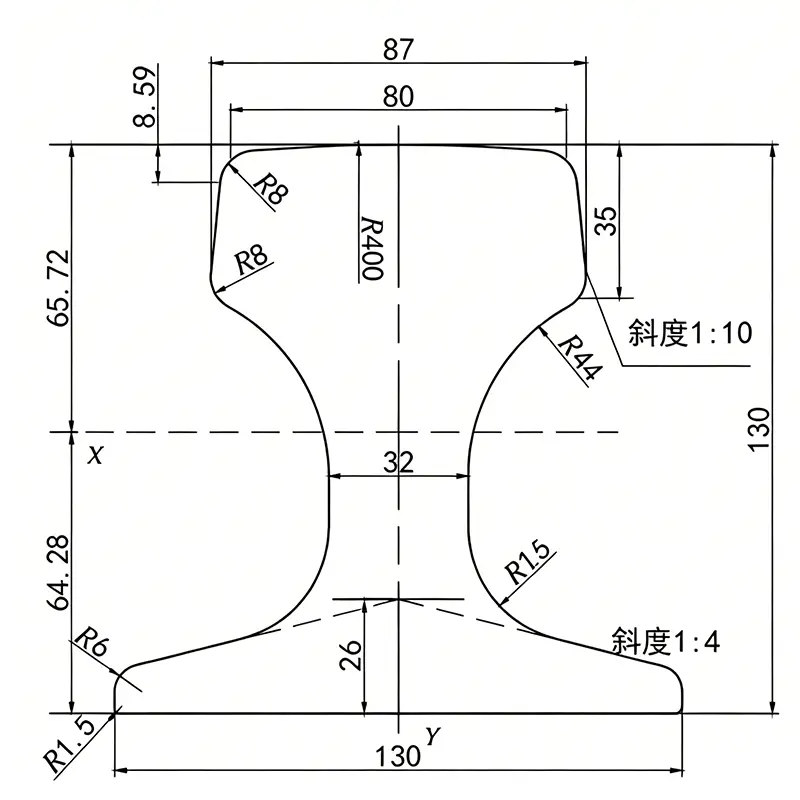

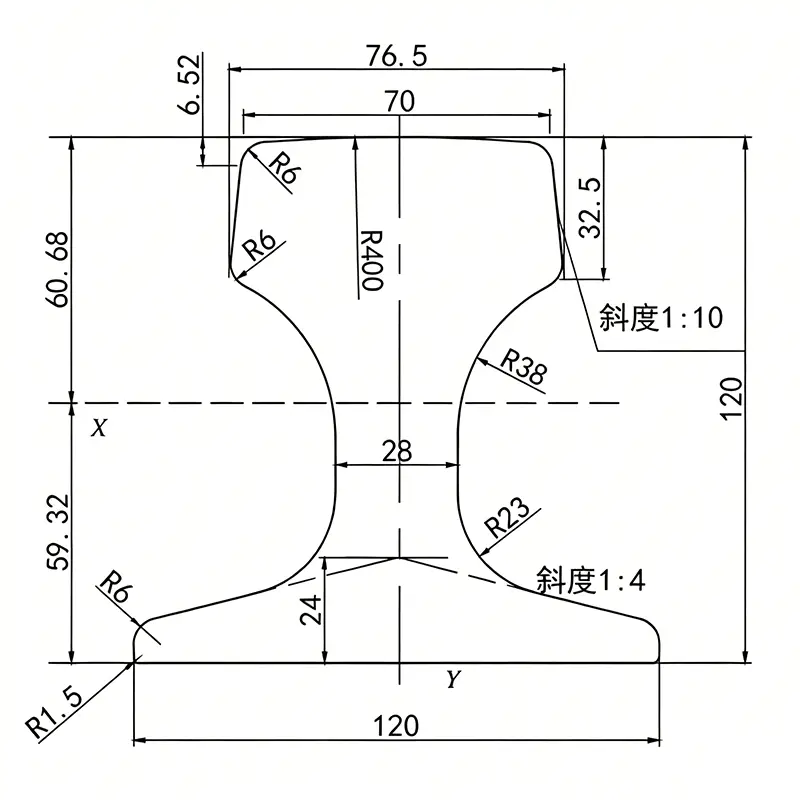

QU Series: QU70, QU80, QU100, QU120 (QU denotes rail head width in mm).
Custom Lengths: Available in standard 12-meter segments or project-specific dimensions (e.g., container-friendly 11.8 m).
Applications
Ports & Terminals: Supports container handling cranes (STS, RTG) for efficient cargo operations.
Heavy Industry: Used in steel mills, shipyards, and automotive plants for lifting oversized equipment.
Logistics Centers: Enables smooth movement in automated storage systems and warehouse robotics.
Installation & Accessories
Welded or Bolted rail clips: Flexible, self-locking clamps with vulcanized rubber buffers for secure rail fastening. Options include welded base plates or high-strength bolts for versatile installation. Also supply rubber pads, steel plates, fish plates, etc.
Certifications & Compliance
Meets YB/T 5055-2014 and aligns with international standards (e.g., DIN 536, UIC 860).
Available with ISO 9001, CE, or customized certifications for global markets.
Why Choose Qu Crane Rails?
Proven Reliability: Trusted by leading industries worldwide for over 15 years.
Cost-Effective Performance: Balances high strength with competitive pricing.
Customization: Tailored solutions for special alloys, coatings, or length requirements.
