W216 Rail Clip

Product Overview

W216 Rail Clip is a high-performance welded base fixing solution engineered by Glory Rail to secure heavy rails in the most demanding industrial environments. Designed to withstand extreme lateral forces, this clip delivers reliable rail stabilization for cranes, heavy machinery, and high-load rail systems.
With a maximum horizontal force capacity of 235kN (24 tonnes), the W216 rail clip ensures structural integrity even under intense operational stress. Its low-profile design is uniquely suited for cranes equipped with guide rollers, eliminating interference while maintaining robust rail retention.

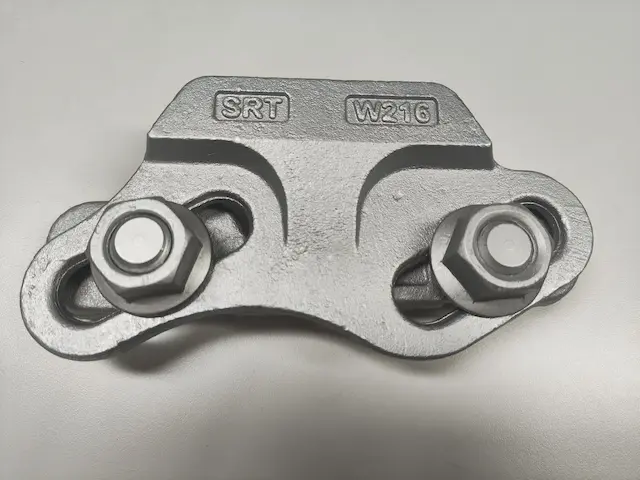

W216 welded rail clip
Get a Quick Quote

Technical Specifications

General Specifications

ParameterDetails
Maximum Lateral Load235kN (24 tonnes)
Horizontal Rail Adjustment20mm (accommodates minor rail alignment variations)
Weight (per unit)1.62kg
Bolt Grade8.8 (high-tensile)
Rubber Block Dimensions– For rail with pad (S): 14mm thickness
– For rail without pad (H): 21mm thickness

Components

The W216 rail clip comprises five key components, each optimized for durability and performance:

Flange Nut: Ensures secure fastening of the bolted assembly.

Steel Clip: High-strength steel construction for withstanding lateral loads.

Vulcanized Rubber Block: Provides cushioned, controlled pressure to protect rail surfaces.

Weldable Base: Made from weldable-grade steel, designed for secure attachment to rail supports.

M16 Captive Bolt: Grade 8.8 high-tensile bolt for reliable locking of components.

Core Features

  • Proven Reliability: A time-tested design with years of successful application across global industrial sectors, from manufacturing plants to port facilities.
  • Welded Installation: The clip is welded directly to the rail support, eliminating the need for access from below—simplifying installation in confined spaces.
  • Secure Locking Mechanism: Two main components are permanently locked together when tightened with a grade 8.8 bolt, preventing loosening under vibration or load shifts.
  • Self-Tightening Function: Automatically compensates for minor rail movement over time, ensuring consistent clamping force throughout the lifecycle.
  • Controlled Force Application: A specialized vulcanized rubber block delivers precise, uniform pressure to the rail, reducing abrasion and extending rail service life.

Applications

The W216 rail clip is ideal for heavy-duty industrial environments, including:
  • Crane runways in manufacturing facilities
  • Port and container handling systems
  • Mining and heavy machinery rail tracks
  • Industrial overhead crane systems with guide rollers

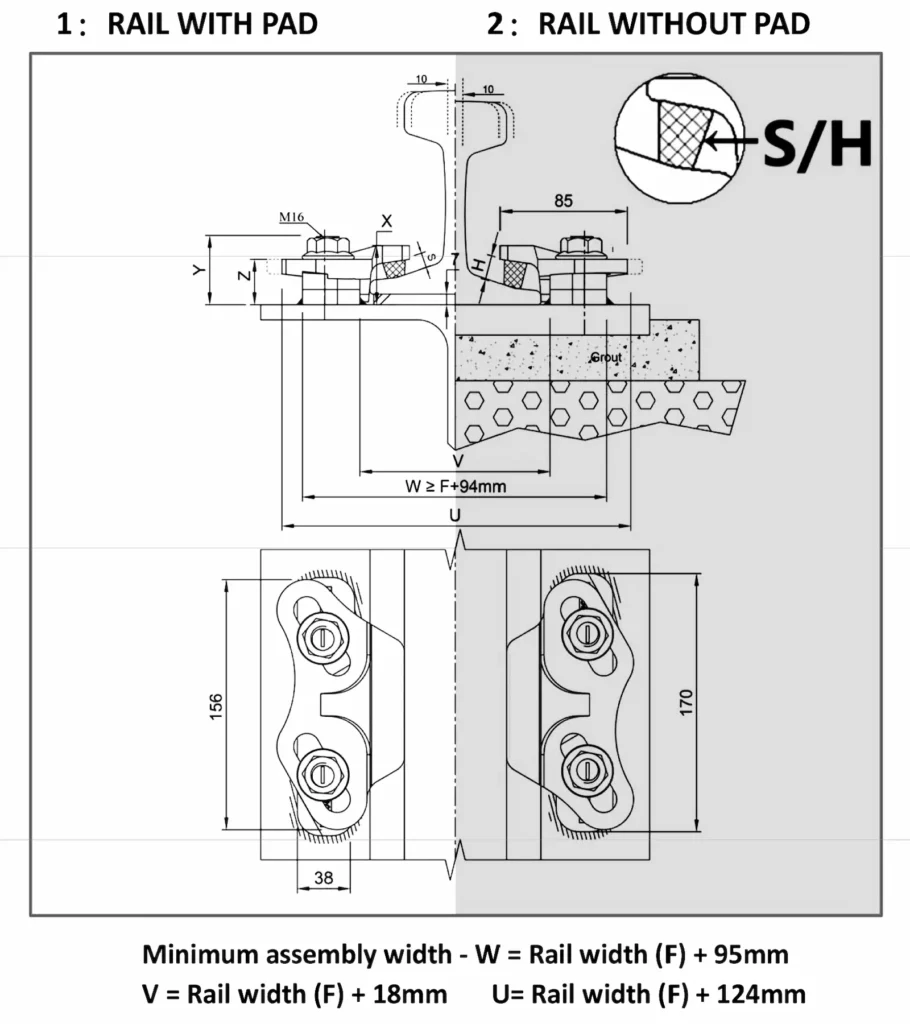

W216 welded rail clamp drawing

Installation Guidelines

Proper installation ensures optimal performance of the W216 rail clip. Follow these steps:
  1. Welding Preparation: Use weldable-grade steel for the rail support. Ensure the base is clean and free of debris.
  2. Welding Process:
    • Weld the clip base to the support with a 4mm throat thickness fillet weld, full perimeter except for the bolt opening.
    • Use low-hydrogen electrodes (AWS E7018 or E7028) to prevent weld cracking under load.
    • Note for rails without pads: Omit the weld section closest to and parallel with the rail.
  3. Tightening: Secure the assembly with the M16 captive bolt, applying a tightening torque of 200Nm to ensure proper locking.
For full installation details, contact Glory Rail’s technical team.

Rail Compatibility

The W216 rail clip is compatible with a wide range of rail profiles. Below is a selection of commonly paired rails; contact Glory Rail for a full compatibility list:
Rail TypeRail Width (F, mm)Rail Height (c, mm)Overall Height (mm)Rail Weight (kg/m)Clip Reference (with pad)Clip Reference (without pad)
P381146813438.73W216/10/39 (S)W216/10/39 (H)
P431147014044.65W216/10/39 (S)W216/10/39 (H)
QU701207012052.8W216/10/39 (S)W216/10/39 (H)
QU801308013063.69W216/10/39 (S)W216/10/39 (H)
QU10015010015089.0W216/10/39 (S)W216/10/39 (H)
QU120170120170118.5W216/10/39 (S)W216/10/39 (H)
JIS50N1276415350.4W216/10/39 (S)W216/10/39 (H)
89kgCR17810211489.8W216/10/39 (S)W216/10/39 (H)

Why Choose W216 Rail Clip?

Glory Rail’s W216 clip combines robust engineering with user-centric design, offering:
  • Unmatched lateral load capacity for high-stress applications
  • Simplified installation with no need for under-rail access
  • Compatibility with a wide range of rail profiles
  • Long-term reliability through self-tightening and vibration-resistant features
