JIS 30A Rail
Product Overview
JIS 30A rail(also called JIS 30kg rail) is engineered to meet the rigorous standards of JIS E 1103-93 and JIS E 1101-93 (Japanese Industrial Standards), delivering exceptional durability for medium-to-heavy load applications. Constructed from Q235B carbon steel (equivalent to JIS SS400) or 55Q high-strength steel , it offers a balance of high tensile strength, weldability, and corrosion resistance, making it suitable for long-term use in harsh industrial and mining settings.
Key Features

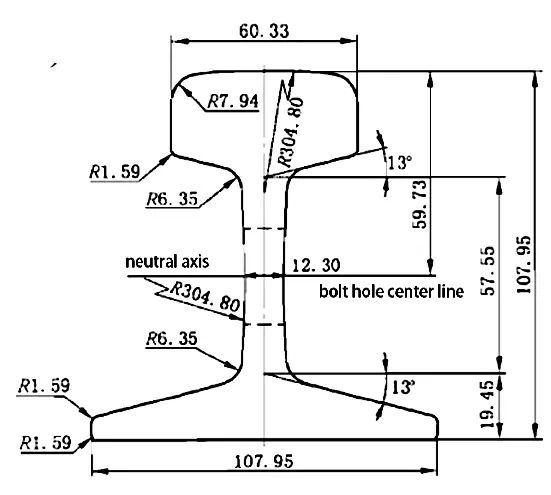

Dimensions:
Weight: 30.1kg/m
Head Width: 60.33 mm
Rail Height: 107.95 mm
Base Width: 107.95 mm
Web Thickness: 12.3 mm
Length: customized from 6m to 24m.
Steel Grades:
Q235B Grade:
235 MPa yield strength, 375–460 MPa tensile strength, and 26% elongation.
Suitable for light loads (axle loads ≤10 tons) and general-purpose applications.
55Q Grade:
Yield strength ≥ 685 MPa and tensile strength ≥197 MPa.
Standards: JIS E 1103-91/JIS E 1101-93
Applications
Mining & Quarrying
Permanent haulage tracks for ore transport in underground mines and open-pit operations, supporting machinery and repetitive loads.
Industrial Facilities
High-capacity internal logistics systems in factories, ports, and manufacturing plants for material handling.
Construction Sites
Temporary rail networks for transporting construction equipment and materials during medium-scale infrastructure projects.
Narrow-Gauge Railways
Tourist railways, industrial trams, and experimental rail systems requiring medium-load capacity.
Crane Systems
Trolley rails and crane tracks in warehouses and workshops, providing stable support for overhead lifting equipment.
Materials：
………………………………………………………………………………………………………………………………………………………………………………………………
| Q235B | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| ≥ | ≥ | ≥ | ≥ | ≥ | |||||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.04 | ||||
Why Choose Glory Rail?
As a leading rail Supplier in China, we use localized manufacturing expertise to offer competitive pricing and rapid delivery. Our JIS Standard rail track is trusted globally for its consistent quality, safety, and we have more than 15 years experience focused on steel rails.
Explore our full range of steel rails solutions and request a quote today. Partner with us for reliable, high-performance rails that drive efficiency in your operations.
