8kg Rail
Product Overview
Gloryrail strictly adheres to GB/T 11264-2012 Hot-Rolled Light Rails to deliver high-reliability 8kg/m light rail solutions worldwide. Manufactured via hot-rolling, this product balances high strength, wear resistance, and cost-effectiveness, suitable for applications in mining, metallurgy, ports, forestry.

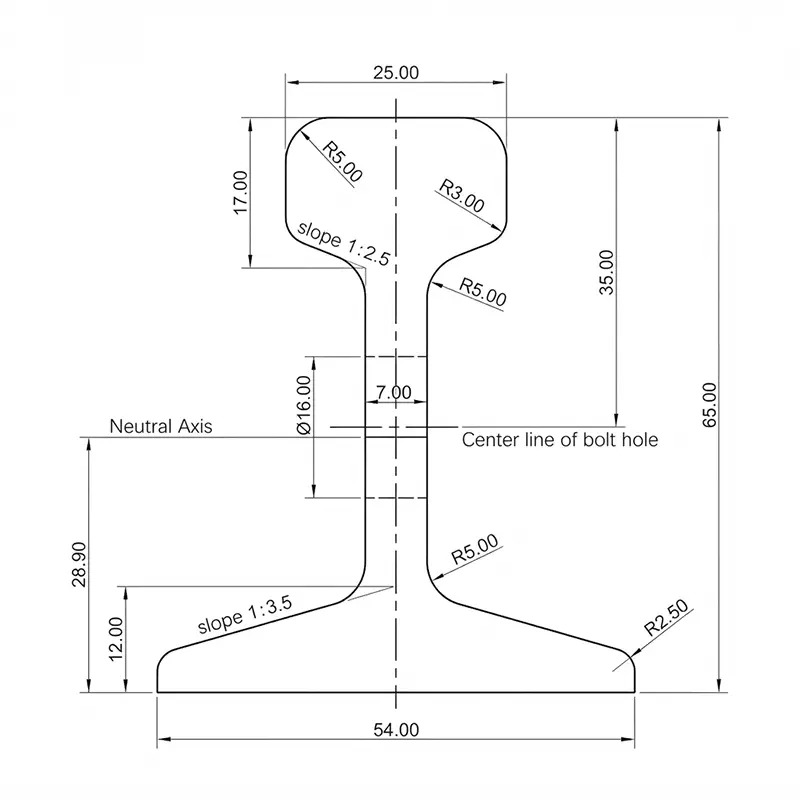

Precision Control ±0.1mmDimensional Details
| Parameter | Value | Description |
|---|---|---|
| Height | 65mm | Vertical distance from rail head to rail base |
| Base Width | 54mm | Horizontal width of the rail base |
| Head Width | 25mm | Horizontal width of the rail head |
| Web Thickness | 7mm | Thickness of the section connecting head and base |
| Standard Length per Piece | 12m | Custom lengths available upon request |
| Theoretical Weight | 7.7kg/m | Weight per meter of rail |
Material & Performance
Material: Q235B Carbon Structural Steel
Excellent weldability, suitable for on-site installation and connection.
15% lower cost compared to 55Q steel
Mechanical Properties.
Tensile Strength: 375-460MPa
Yield Strength: ≥235MPa
Elongation: ≥26%
Hardness: Uniform across the entire rail
Manufacturing Process & Quality Control
Production Flow
1.Raw Material Selection: High-quality Q235B billets with strict composition testing
2.Heating & Rolling: Uses walking-beam reheating furnaces and high-precision rolling equipment to ensure dimensional accuracy
3.Precision Inspection: Online laser detection to control dimensional tolerance within ±0.1mm
4.Performance Testing: Sampling from each batch for mechanical property testing to meet standards
5.Surface Treatment: Removal of oxide scale to ensure surface smoothness.
Quality Assurance
Automated production to reduce human error
Full-process quality records traceable
Compliant with GB/T 11264-2012 standard
ISO 9001 Quality Management System certified
Applications
Mining Transportation: Ideal for underground mine cart tracks.
Forestry & Agriculture: Efficient for forest transport and agricultural machinery tracks, minimizing manual laying effort.
Explore our full range of steel rails solutions and request a quote today. Partner with us for reliable, high-performance rails that drive efficiency in your operations.
