TR57 Rail
Product Overview

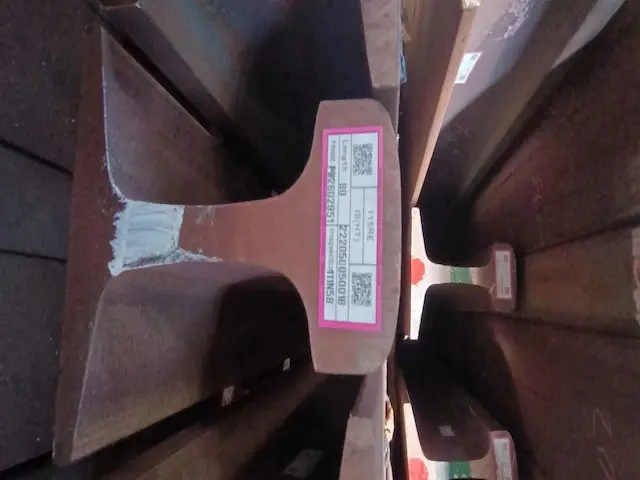

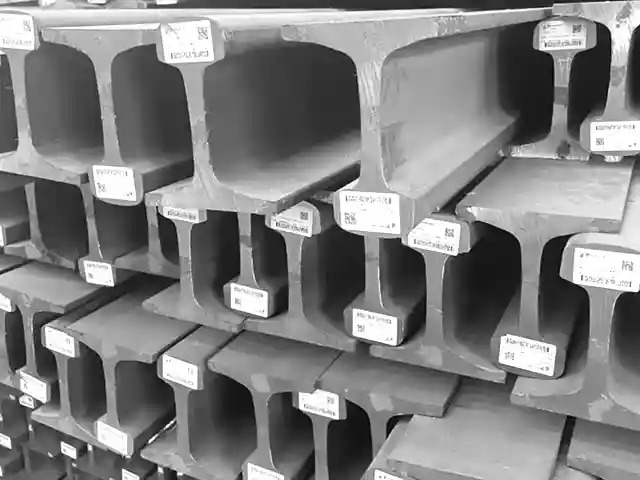

115RE (TR57) rail Designed specifically for high-intensity railway networks, it has become the core choice for heavy-haul freight and industrial rails with its excellent load-bearing capacity and ultra-long durability. Compliant with the American AREMA standards, it is suitable for harsh scenarios with an axle load of ≥25t. It is widely used in heavy-haul main lines, industrial plants, and hub stations, and is a rail solution that balances “heavy-haul performance + long-term stability”.
Performance Highlights
🔹 Superior Wear Resistance: With a rail head hardness of 280-320 HB, it resists wear from heavy-duty freight wheel sets, extending the service life by 20-25% compared to standard grades and is suitable for high-frequency freight lines.
🔹 Enhanced Corrosion Resistance: Optional hot-dip galvanizing/epoxy coating is available for corrosive environments such as humid areas, coastal regions, and mining zones, prolonging the service life of port/mining rails.
🔹 Heavy-Load Adaptability: Supports an axle load of ≥25t, meeting the long-term stable operation requirements for heavy-load transportation of coal, ore, containers, etc.
Core Specifications
| Parameter Category | Details | Core Significance |
|---|---|---|
| Product Model | 115RE (TR57) | Complies with AREMA standard for heavy-duty rail specifications |
| Executive Standard | AREMA 2019 | Ensures product compatibility and industry compliance |
| Key Dimensions (mm) | Height (H): 168.28 | Meets structural stability requirements in heavy-duty scenarios |
| Base Width (B): 139.7 | ||
| Head Width (C): 69.06 | ||
| Web Thickness (E): 15.88 | ||
| Unit Weight | 56.8 kg/m | Balances load-bearing capacity and installation convenience |
Key Advantages
📏 Precision Manufacturing:
Dimensional accuracy controlled within ±0.1mm, ensuring smooth rail splicing and reducing operational vibration
⚙️ High-Quality Base Material:
Using high-grade carbon steel / low-alloy steel to lay a solid foundation for heavy-load bearing
🏭 Rich Experience:
With over 17 years of professional manufacturing experience, serving more than 200 enterprise customers, and quality verified by the market
🌐 Global Compliance:
Strictly adhering to the AREMA 2019 standard, compatible with global heavy-load track systems
| Steel Type | Strength Grade | Hardness (HB) | Tensile Strength (ksi) | Yield Strength (ksi) | Elongation (%) | Application Scenarios |
|---|---|---|---|---|---|---|
| Carbon Steel | Standard Strength (SS) | ≥310 | ≥142.5 | ≥74.0 | ≥10 | Conventional heavy-haul lines |
| Intermediate Strength (IS) | ≥350 | ≥155.0 | ≥105.0 | ≥10 | High-frequency shunting, medium axle load scenarios | |
| High Strength/Head Hardened (HH) | ≥370 | ≥171.0 | ≥120.0 | ≥10 | Heavy-haul mainlines, high-impact scenarios | |
| Low Alloy Steel | Standard Strength (LA) | ≥310 | ≥142.5 | ≥74.0 | ≥10 | Conventional heavy-haul + mild corrosion environments |
| Intermediate Strength (IH) | ≥325 | ≥147.0 | ≥80.0 | ≥8 | Industrial plants, continuous operation scenarios | |
| High Strength/Head Hardened (LH) | ≥370 | ≥171.0 | ≥120.0 | ≥10 | Extreme heavy-haul, high-corrosion environments |
| Executive Standard | Steel Type | C (%) | Mn (%) | P (%) ≤ | S (%) ≤ | Si (%) | Other Key Elements (%) |
|---|---|---|---|---|---|---|---|
| AREMA 2019 | Carbon Steel | 0.74-0.86 | 0.75-1.25 | 0.020 | 0.020 | 0.10-0.60 | Ni ≤ 0.25; Cr ≤ 0.30; V ≤ 0.010 |
| Low Alloy Steel (Int./High Strength) | 0.72-0.82 | 0.70-1.25 | 0.020 | 0.020 | 0.10-1.00 | Cr: 0.40-0.70; Ni ≤ 0.15 | |
| Low Alloy Steel (Standard Strength) | 0.72-0.82 | 0.80-1.10 | 0.020 | 0.020 | 0.10-0.50 | Cr: 0.40; Ni ≤ 0.15 |
Selection & Applications
- Conventional heavy haul (axle load: 25–30t): Choose Carbon Steel Grade SS / Low Alloy Steel Grade LA.
- High-frequency impact (hubs, marshalling yards): Choose Carbon Steel Grade IS / Low Alloy Steel Grade IH.
- Extreme heavy haul (axle load ≥ 30t) + high corrosion (coastal areas/mining zones): Choose Carbon Steel Grade HH / Low Alloy Steel Grade LH plus anti-corrosion coating.
Core Application Scenarios
🏭 Mega-Site Industrial Tracks: Steel mills, power plants and bulk cargo terminals, suitable for continuous heavy-haul shunting needs.
🚦 Busy Junctions & Terminals: Marshalling stations and transfer hubs, withstanding high-frequency braking impact and wear.
Installation & Support
Installation Guidance: A professional engineer team provides technical solutions and on-site guidance for rail laying, splicing, and fixing.
Supporting Adaptation: Offers customized connectors complying with AREMA standards to ensure seamless compatibility with global rail systems.
Sample Testing: Provides free sample delivery and performance testing to verify product adaptability before cooperation.
Typical Case
Panama Client’s Heavy-Haul Rail Project (July 2022)
Client Requirements: Suitable for heavy-haul container transportation at ports, requiring AREMA standards and anti-corrosion performance.
Delivery Results: Provided 115RE (TR57) high-carbon steel rails with hot-dip galvanizing coating, which successfully passed on-site acceptance and was put into use.
Supporting Services: Full-process supervision and installation guidance to ensure zero issues in transportation and laying.
Get Solution
We can provide you with: ① Free accurate quotation ② Customized technical solutions ③ Sample testing services ④ Full-process installation and after-sales support
Brand Strength
17+ years of professional manufacturing experience, serving over 500 corporate clients worldwide.
Fully compliant with AREMA 2019 standards, with products exported to Panama, Southeast Asia and other countries and regions.
Standardized production system, enabling fast delivery of regular specifications within 20 days.
24/7 after-sales response, with full-process follow-up on orders and usage feedback.
