WJK QU80 rail clip

Product Overview

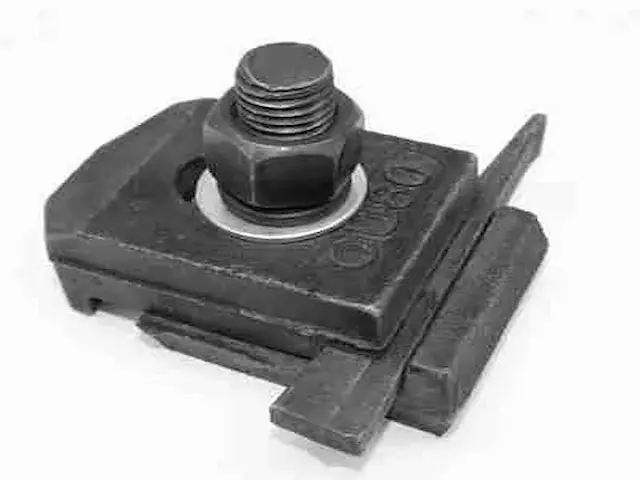

WJK QU80 Rail Clip, also recognized as a welded rail clamp or crane rail clip, is a specialized fastener designed for securing QU80 crane rails during installation and operation. As a key welded rail fixture, it adheres to the widely – used crane beam rail fixing standard, playing a crucial role in maintaining rail alignment and stability in heavy – duty crane systems.

Product Classification

WJK welded rail clamps are categorized into three main types to meet diverse application needs:

Light Rail Clamps: WJK – TG24, WJK – TG30

Heavy Rail Clamps: WJK – TG38, WJK – TG43, WJK – TG50

Lifting Rail Clamps: WJK – QU80, WJK – QU100, WJK – QU120

Product Specifications

Material	Q235 (customizable to meet specific project requirements)
Dimensions (L x W x H)	Tailored to customers’ requirements
HS Code	730240
Usage	Fastening QU80 crane rails for stable rail – to – sleeper connection
Quality Control	Strict production process monitoring to ensure high – quality output
Keyword	Railway Fastener, Crane Rail Clip, WJK QU80 Rail Clip
Documentation	docPI, CI, CO, FORME provided as per export and project needs
Advantage	Large stock for prompt delivery, specialized design for QU80 crane rails

Product Application & Installation

Application

The WJK QU80 rail clip is primarily used for fixing and installing QU80 crane rails. It is an ideal choice for crane systems in industrial environments such as ports, steel mills, and large – scale logistics centers, ensuring the safe and efficient operation of cranes.

Installation Sequence

Welding the Base Plate: First, weld the base plate to the designated position on the crane beam or track bed.
Assembling Components: Place the bolt, adjusting plate, upper cover plate, flat washer, spring washer, and nut in sequence.
Tightening and Calibrating: After installing and tightening the T – bolt, compress the spring washer until the height difference at the joint is within 2mm, ensuring a stable and precise rail connection.

Product Structure & Design Drawings

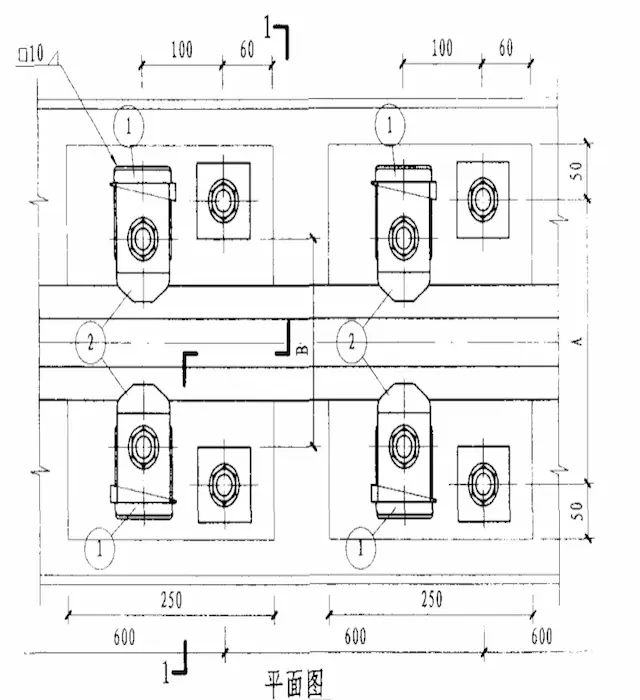

The WJK QU80 rail clip set consists of multiple components, including the upper cover, base, pin, nut, bolt, and elastic flat washer. Below are the design drawings for reference (you can also request detailed 2D/3D drawings from our technical team):

Note: For more detailed dimensional and structural information, please contact our sales and technical support team.

Why Choose Our WJK QU80 Rail Clip?

Specialized for QU80 Rails: Custom – designed for QU80 crane rails, ensuring a perfect fit and optimal load – bearing performance.

Proven Quality: Manufactured from high – quality Q235 material and subject to strict quality control, it can withstand the heavy loads and dynamic forces of crane operations.

Customization Capability: Dimensions, materials, and surface treatments can be customized to meet the unique needs of different projects.

Technical Support: Our professional team provides comprehensive installation guidance and after – sales technical support to ensure smooth project implementation.
