ISCOR 48 kg/m Rail
Product Overview
ISCOR 48 kg rail, supplied in R260 rail steel, is built for medium-to-heavy freight service, mining hauls and terminal tracks. It offers higher wear resistance and load-bearing capacity than light-duty rails while remaining economical for many heavy-duty applications.
Key Features

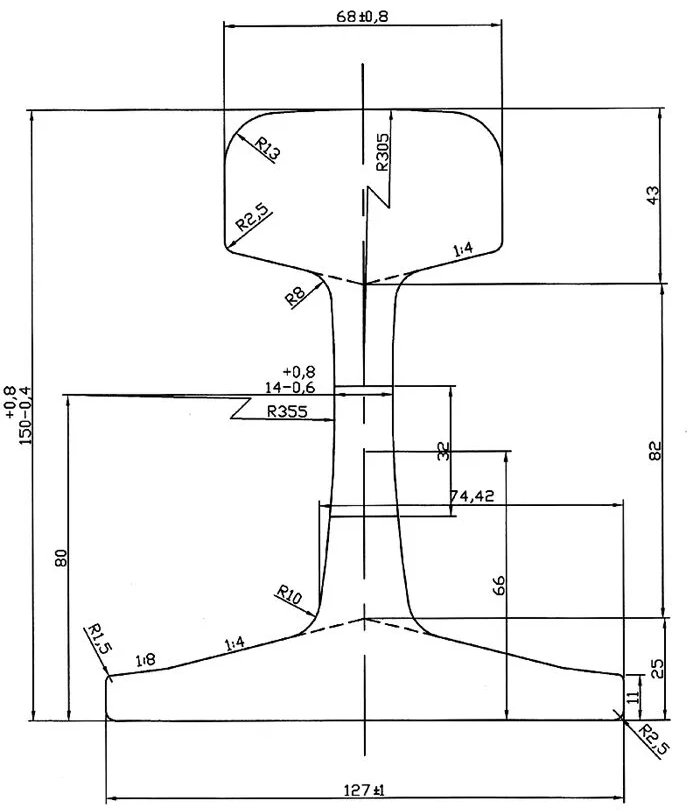

Dimensions:
Weight: ≈48.07kg/m
Head Width: 68 mm
Rail Height: 150 mm
Base Width: 127 mm
Web Thickness: 14 mm
Length:custom lengths on request
Optional Steel Grades: R260
Standards: ISCOR
MTC available

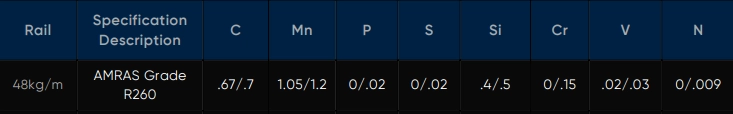

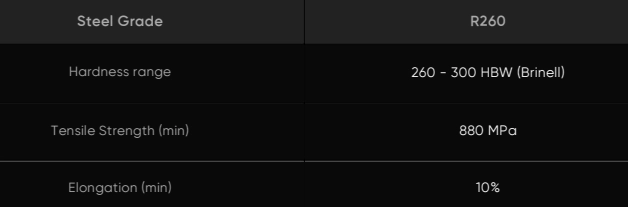

Material & metallurgy
R260 is a commonly used rail steel grade for medium-to-heavy applications. Production emphasizes clean steel practices and controlled rolling; heat-treatment options (e.g., normalization or quench & temper) can be applied where buyers specify increased hardness or fatigue resistance. Representative test results and heat-treatment records are included with each batch.
Key benefits
High wear resistance: R260 chemistry and controlled processing improve head life under abrasive service.
Good load capacity: suitable for sustained freight traffic and heavy material handling.
Cost-effective for terminals: balances strength, durability and procurement cost for port and yard applications.
Project-ready finishing: factory cut-to-length, precision hole drilling and end preparation reduce onsite labour.
Traceable QA: full batch MTC and optional third-party inspection for procurement confidence.
Typical Applications
Main & secondary freight lines
Port & terminal spurs (STS / yard tracks)
Mining haul roads & industrial heavy haul
Intermodal & transfer yards
Heavy-duty sidings and stockyard rails
Replacement or upgrade projects
FAQs
Q: Can you provide R260 chemistry and mechanical data?
A: Yes — full chemistry and representative mechanical test results are supplied in the MTC. Third-party witnessing can be arranged.
Q: Do you support custom hole patterns and special end profiles?
A: Yes — in-plant machining per customer drawings is standard for project orders.
Why Choose us？
We provide ISCOR 48kg rails with full MTC traceability, configurable processing (cutting, drilling, heat treatment) and supervised loading documentation.
Optional third-party inspections, proven project references and global logistics support help ensure on-time delivery and reduce commercial risk.
