JIS Standard Fish Plate

Product Introduction

JIS Standard Fish Plate—precision-engineered for rail connections under Japan Industrial Standards (JIS E 1101). Designed to simplify rail joint installation, these fish plates replace complex welding with a fast, bolted solution. Ideal for Japanese railway systems and industrial applications, they ensure durability and alignment for rails like 30A, 37A, 40N, 50PS, and 50N.

Advantages

Long Service Life

Constructed from Q235/55# steel with high tensile strength (360–645 MPa) and wear resistance.

Withstands dynamic loads in Japanese railway and industrial applications.

Fast, Easy Installation

Eliminates complex welding—installs in minutes with fish bolts.

Reduces labor costs and downtime vs. traditional rail welding.

Specifications

JIS E 1101 Compliance

Dimensions: Customizable to JIS standards or client drawings.
Weight: Optimized for rail models (30A, 37A, 40N, 50PS, 50N) to ensure perfect alignment.

Basic Details

Attribute	Details
Type	JIS Standard Fishplates for Railway Rails
Standard	JIS E 1101
Origin	Henan, China (ISO9001:2008 Certified)
Brand	Glory Rail
Product Name	Railway Fish Plate / Rail Joint Bar
Surface Finish	Natural (uncoated) or custom paint (per client request)
Core Keywords	JIS fish plate, rail joint bar, railway fastener
Application	Connects rails in Japanese railways, industrial cranes, and transit systems

Material & Models

Material Options

Material	Key Properties	Use Case
Q235	High ductility, cost-effective	General railway/transit rails
55# Steel	High strength, wear-resistant	Heavy-load industrial cranes

Model Variations

Model	Rail Compatibility	Holes
30A, 37A	Light to medium rail profiles	4 or 6 holes
40N, 50pS	Medium rail systems	4 or 6 holes

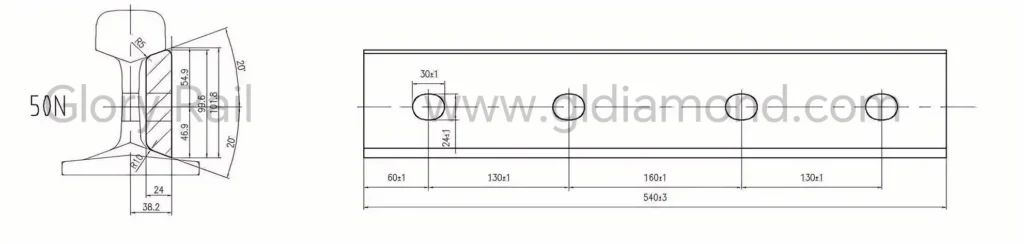

50N	Heavy-duty industrial rails	4 or 6 holes
