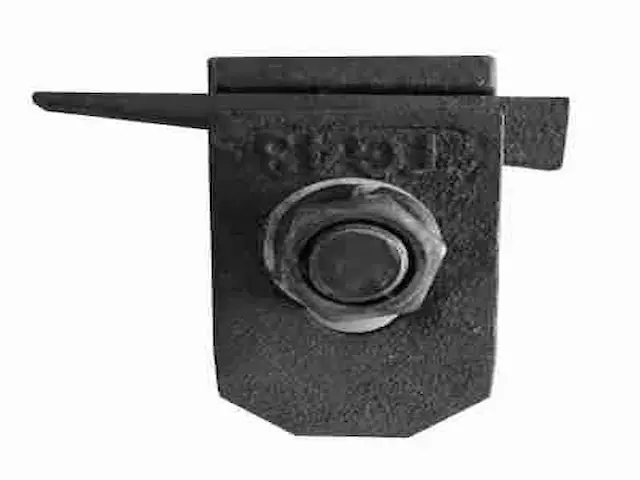

TG43 Rail Clamp for P43 Rail

Product Overview

TG43 Rail Clamp, a key member of the WJK rail clamp series (also called rail clips), is engineered to secure P43 rails during installation and operation. As a welded rail fixture, it follows a widely – adopted crane beam rail fixing standard, ensuring stable rail alignment for industrial applications.

Application & Installation

Target Applications

Perfect for securing P43 rails in:

Crane systems (gantry, overhead cranes) in ports, steel mills, and warehouses.

Industrial rail tracks with medium – to – heavy load requirements.

Special – height projects needing reduced – installation – height clamps.

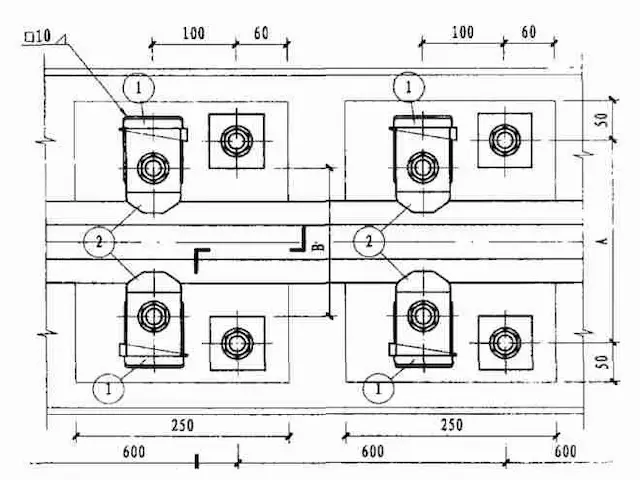

Installation Process

Follow these steps for optimal performance:

Component Prep: Gather the clamp, bolts (8.8 grade for Q345 setups), flat washers, spring washers, and rubber pads (if used).

Bolt Placement: Insert the bolt into the base, then add the upper cover, flat washer, spring washer, and nut.

Tightening: Secure the nut to compress the spring washer, ensuring a stable rail – to – support connection.

Rubber Pad Integration: Lay full – length or intermittent pads as per project needs (critical for heavy – duty lifting).

Product Specifications

Attribute	Details
Type	RAIL CLAMP / CLIP, Rail clamp for P43 rail
Material	Q235 (cast steel for core components)
Dimensions (L x W x H)	Customizable to customer requirements (based on rail & project specs)
Place of Origin	Henan, China
Brand Name	Glory Rail
HS Code	730240
Usage	Fastening P43 railroad rails to support structures
Quality Control	Strict production process monitoring (material & assembly checks)
Keyword	Railway Fastener, TG43 Rail Clamp, P43 Rail Fixing
Color	Customizable (per client demand)
Sample Availability	Available upon request (for testing & validation)
Documentation	PI, CI, CO, FORME (provided for export & project compliance)
Advantage	Large stock for quick delivery; specialized for P43 rail compatibility

Product Series & Classification

WJK welded rail clamps are divided into three categories to match diverse rail and load requirements:

Light Rail Clamps: WJK – TG24, WJK – TG30

Heavy Rail Clamps: WJK – TG38, WJK – TG43, WJK – TG50

Lifting Rail Clamps: WJK – QU80, WJK – QU100, WJK – QU120

Key Features & Technical Details

Material & Performance Grades

Q235 Material (Standard Type):
- Bolt Grade: C – grade
- Max Lateral Force per Wheel Pressure: 45kN
- Max Installation Height: 85mm
Q345 Material (Upgraded Type):
- Bolt Grade: 8.8 – grade high – strength bolts
- Max Lateral Force per Wheel Pressure: 40kN (for reduced – height designs) or 55kN (for standard setups)
- Max Installation Height: 71mm (optimized for special – height requirements)

Design Variants

Ordinary Thickened Type:
- Suited for standard P43 rail installations.
- Made with Q235 material; C – grade bolts handle up to 45kN lateral force.
Reduced – Height Thickened Type:
- Ideal for applications with strict height limits (max 71mm install height).
- Uses Q345 material and 8.8 – grade bolts, withstanding 40kN lateral force.

Elastic Composite Rubber Pads

To enhance vibration absorption and rail protection, two rubber pad options are available:

Full – Length Pads: Installed along the entire rail length for continuous cushioning.
Intermittent Pads: Placed every 2 sets of clamps. Recommended for heavy – duty lifting (>30T) to eliminate “curved bow wave” effects.

Why Choose Glory Rail’s TG43 Rail Clamp?

Precision Engineering: Tailored for P43 rails, ensuring a perfect fit and long – term stability.
Material Flexibility: Options for Q235/Q345 materials and bolt grades to match load demands.
Vibration Control: Elastic rubber pads reduce noise and rail wear, extending system lifespan.
Stock & Support: Large inventory ensures fast delivery; our team provides installation guidance and custom solutions.
