When replacing an existing rail fastening system, dimensional compatibility can be just as important as product quality. For an Indonesian trading and engineering service company, the requirement was straightforward: supply Y3 rail clips for a 43kg crane rail. However, the customer already had an existing Y3 rail clip design in service and needed the replacement clips to match their existing installation as closely as possible.
Rather than asking the customer to take the risk of ordering directly, Glory Rail provided dimensional verification, supplied a physical sample for installation testing, and completed the order only after the customer confirmed compatibility.
The final shipment included 402 sets of Y3 rail clips, shipped from Tianjin Port to Jakarta in April.
Project Overview
| Item | Details |
|---|---|
| Customer | Indonesian trading & engineering service company |
| Application | Crane rail system |
| Rail | 43kg rail |
| Product | Y3 Rail Clip |
| Quantity | 402 sets |
| Project Location | Indonesia |
| Sample Testing | Yes |
| Shipping Port | Tianjin, China |
| Destination | Jakarta Port, Indonesia |
| Order Time | April |
| Shipment | April |
The Challenge: Replacing an Existing Y3 Rail Clip
The customer provides rail system products and engineering services for applications including rail transit, port construction, industrial lifting and material handling, and heavy industry.
For this crane project, the required fastening system was a Y3 rail clip for 43kg rail.
The main concern was not simply whether a new Y3 rail clip could secure the rail. The customer already had an older version of the Y3 rail clip and wanted the replacement product to be as close as possible to the existing design and dimensions.
The old clips had also been in service for some time and showed visible signs of rust and wear.
For the customer, the key question was:
Would the new Y3 rail clips match the existing installation and work with their 43kg rail?
This made dimensional compatibility a critical part of the purchasing decision.
Dimensional Verification Before Sampling
The customer first contacted Glory Rail in late February.

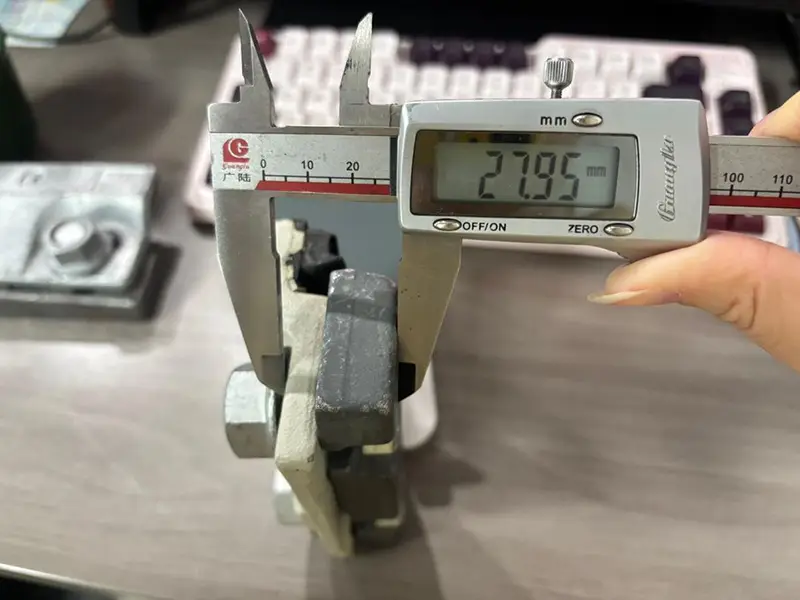

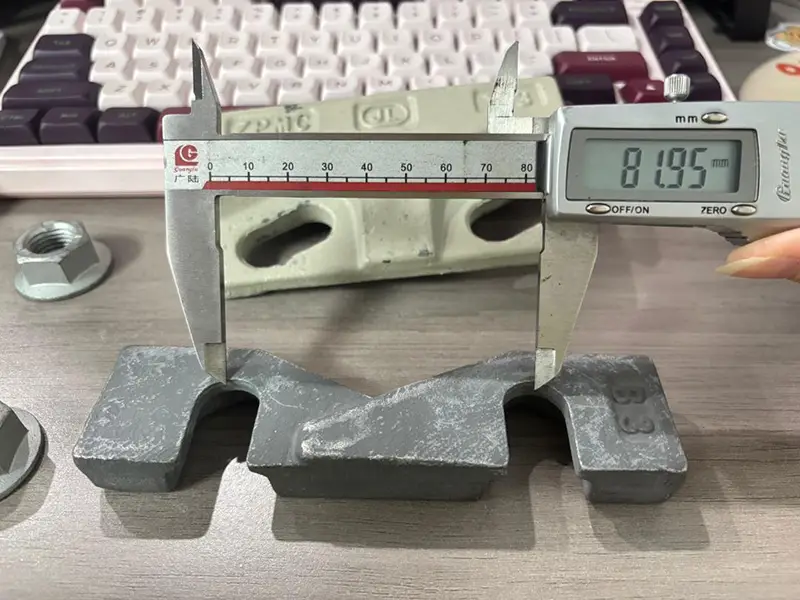

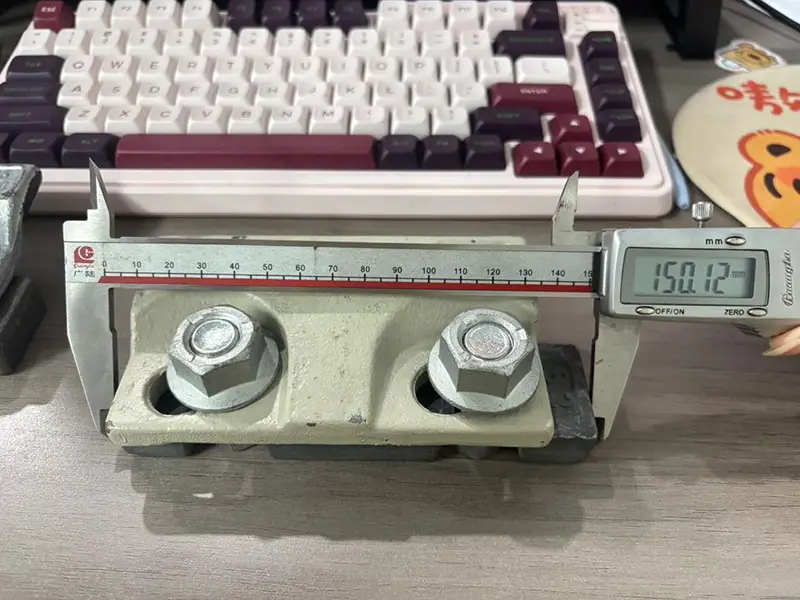

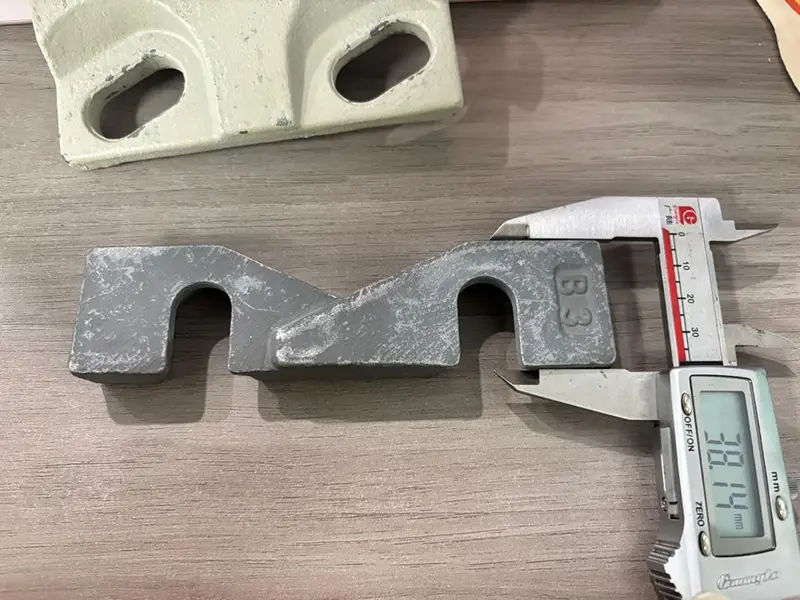

Because the customer was concerned that the dimensions of a new Y3 rail clip might differ from their existing clips, Glory Rail did not rely on the product name alone. The team provided photos showing the key measured dimensions of the Y3 rail clip during the technical communication process.
These measurement photos allowed the customer to compare the proposed Y3 rail clip with the old clip they already had on site.
This step helped narrow down the dimensional differences before the customer placed an order.
However, the customer still had one important concern: a drawing could confirm dimensions, but it could not fully prove installation compatibility.
Physical Sample for Installation Testing
In March, the customer continued to be concerned that the replacement Y3 rail clip might differ from the existing clips or might not install correctly on their crane rail system.

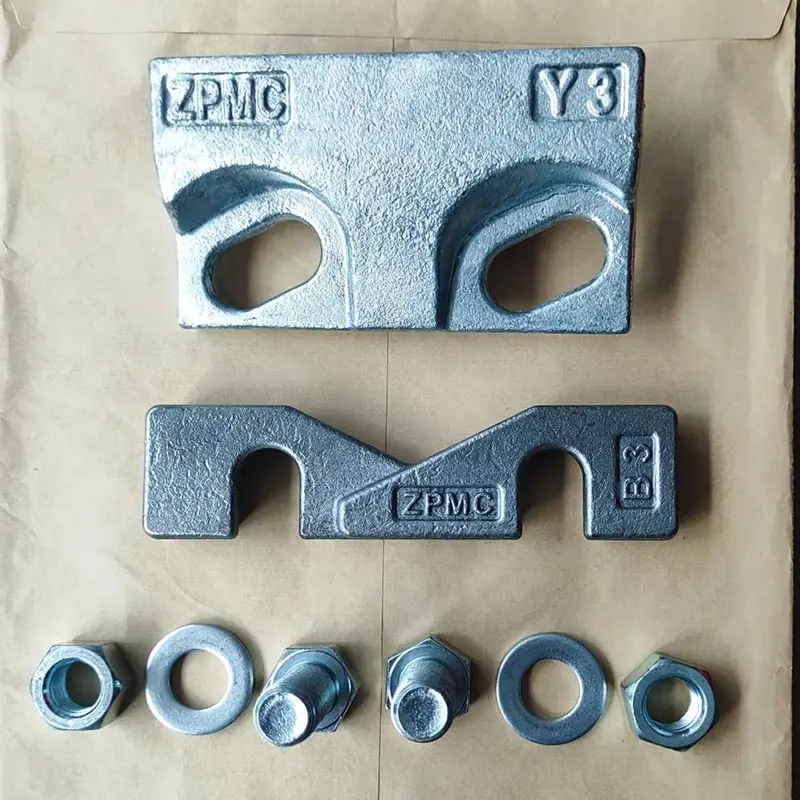

Instead of pushing the customer to place an order based only on dimensional information, Glory Rail arranged a physical sample shipment in mid-March.
The customer received the sample and carried out an installation test on their side.
The sample testing gave the customer an opportunity to check the actual product against their existing rail fastening arrangement before committing to the full quantity.
This was an important step for a replacement project where compatibility with an existing installation was more important than simply selecting a standard product from a catalog.
From Sample Approval to 402-Set Order
After receiving and testing the sample, the customer confirmed that the Y3 rail clip could be used for their application.
The customer then placed the order in April for:
402 sets of Y3 rail clips for 43kg crane rail.
The progression was straightforward:
Existing Y3 Rail Clip → Dimensional Comparison → Measurement Photos → Physical Sample → Installation Test → Order Confirmation
For Glory Rail, this approach reduced the customer’s installation risk before the full shipment was produced and dispatched.
Shipment from Tianjin to Jakarta
The completed order was shipped in April from Tianjin, China, to Jakarta Port, Indonesia.
With the product compatibility confirmed through sample testing, the 402-set order could proceed with greater confidence and without requiring the customer to modify their existing fastening arrangement based on assumptions.
Why Sample Testing Matters for Rail Clip Replacement
For a new rail installation, selecting a compatible fastening system can often be based on the rail profile, support structure, load requirements, and installation method.
Replacement projects can be more demanding.
An existing rail system may already have fixed dimensions, mounting positions, and installation conditions. Even a relatively small dimensional difference in a rail clip can affect installation.
This Indonesian project demonstrates a practical approach to replacement orders:
- Verify key dimensions before production
- Compare the new clip with the existing product
- Provide a physical sample when compatibility is uncertain
- Allow the customer to test the sample on site
- Proceed with the full order after confirmation
For engineering contractors, distributors, and crane system suppliers replacing existing rail fastening components, this process can help reduce the risk of receiving a product that cannot be installed as expected.
Project Result
The customer successfully completed the sample installation test and subsequently placed an order for 402 sets of Y3 rail clips.
The products were shipped from Tianjin to Jakarta in April for use with 43kg crane rail.
More importantly, the project was not based solely on a catalog specification. The product was dimensionally checked and physically tested before the full order was confirmed.
For Glory Rail, this is also a typical approach to supporting customers who need replacement rail fastening components with specific dimensional requirements.
