1. Project Background & Customer Profile
The client for this project is a local marine engineering service company in Pakistan. Their business mainly focuses on ship deck crane equipment supply, rail installation, and vessel repair and maintenance services. They have long-term experience serving multi-purpose heavy-lift vessels and general cargo ships at Karachi Port, and they hold full certification for offshore equipment construction and ship inspection compliance.

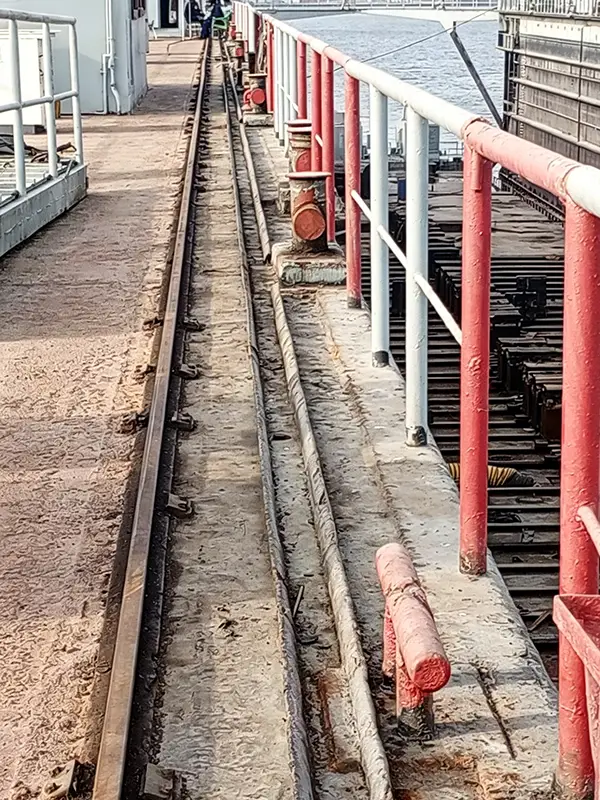

The customer undertook a vessel refurbishment project. The ship is equipped with a longitudinal rail-mounted deck crane system. The continuous rail line supports onboard loading and unloading operations for containers and heavy cargo.

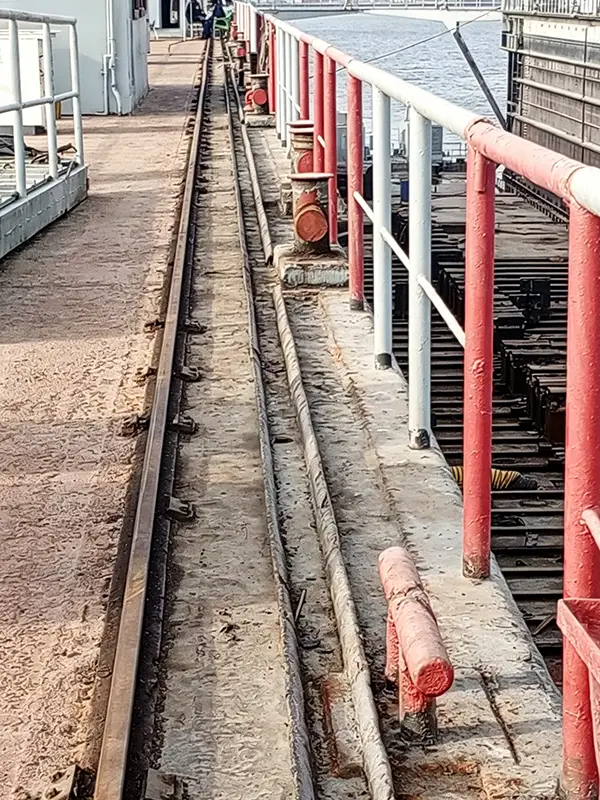

After long-term service in Karachi’s high-temperature and high-salinity marine environment, the original rail system had severe wear on the rail head, large-scale coating peeling, and heavily corroded rail clamps that were stuck and no longer functional. There was also no shock-absorbing structure in the system. As a result, crane operation became unstable, causing vibration during travel, with potential risks of derailment and fatigue cracking on the deck foundation—posing serious safety hazards.
After multiple rounds of sample comparison and technical evaluation of working conditions, the client finally selected Glory Rail’s complete marine crane rail solution, including A45 steel rails, welded rail clips, and rubber pads.
2. Core Supply Configuration & Engineering Standards
1. Core Load-Bearing Product: A45 Ship Deck Crane Rail

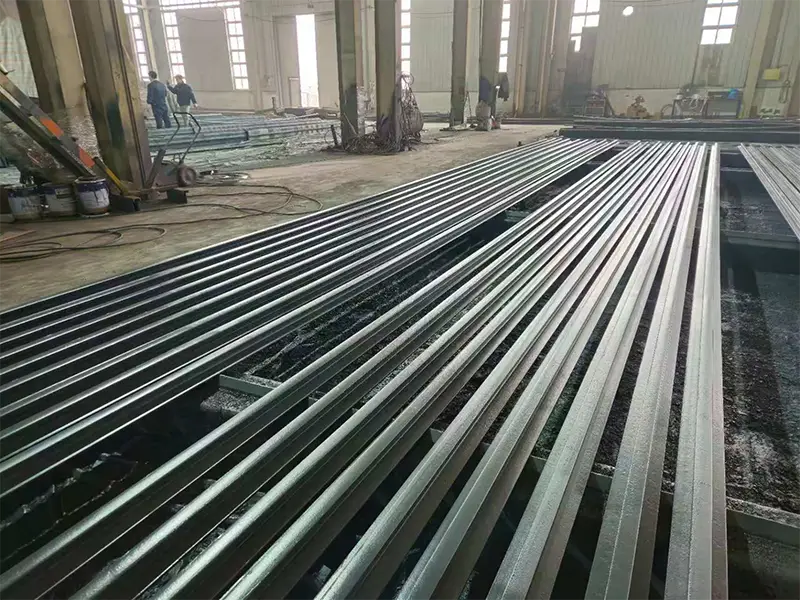

A total of 312 meters of A45 steel rail was supplied. This rail profile is specially designed for ship-mounted gantry crane systems. It is engineered to handle heavy-duty deck loading conditions and dynamic forces caused by vessel rolling and pitching.
Strict requirements were followed for straightness and running surface flatness in accordance with marine crane rail standards, ensuring smooth crane travel without jamming throughout the full operating range.
2. Complete Fastening System: Welded Rail Clips + Marine-Grade Rubber Pads
Glory Rail provided a fully integrated fastening system, allowing the customer to avoid sourcing and matching components separately:
- Welded rail clips: Designed for reinforced ship deck bases. They can be directly welded on-site, offering easy installation and high locking strength.
- Special rubber pads: Installed between the rail bottom and the foundation. They absorb vibration from crane movement and vessel motion, reduce thermal expansion stress, and prevent rigid steel contact that could cause deck cracking or rail displacement.
3. Marine-Grade Heavy Anti-Corrosion System
All 312 meters of A45 rail were processed with a strict anti-corrosion system designed specifically for high-salinity marine environments such as Karachi:
- Surface blasting treatment to Sa2.5 standard, fully removing rust, scale, and impurities to ensure strong coating adhesion
- Multi-layer marine protective coating applied across the rail head, web, and base with full coverage and no missed areas
- The coating forms a durable corrosion-resistant barrier, significantly extending service life in offshore conditions
4. Export & Delivery
The full set of Glory Rail products—including rails, rail clips, and rubber pads—was shipped from Tianjin Port in early February 2026 and delivered directly to Karachi Port, Pakistan.
All shipments included complete documentation such as material certificates, surface treatment inspection reports, and rail dimensional drawings to meet local marine inspection and approval requirements.
3. Key Advantages of Glory Rail System Solution
One-stop integrated solution for ship crane rail systems
Unlike standard rail suppliers, Glory Rail provides a complete package of A45 rails, welded rail clips, and rubber pads specifically developed for ship deck crane applications. This eliminates issues caused by mismatched components and on-site modifications.
Customized heavy-duty anti-corrosion system for Pakistan marine environment
Designed for Karachi’s high salinity and humid climate, the Sa2.5 blasting + three-layer marine coating system effectively solves rapid corrosion issues and reduces frequent maintenance needs, significantly lowering long-term operational costs.
Installation-friendly design for on-site welding
Welded rail clips can be directly welded onto reinforced deck foundations. Combined with rubber pads for vibration damping, the system allows fast installation of the full 312-meter rail line, reducing vessel downtime during dry dock maintenance.
Standardized export delivery with complete certification
Glory Rail ensures full export compliance from Tianjin Port to Karachi, with all necessary inspection documents provided to support smooth local marine inspection and project acceptance.
4. Project Results & Customer Feedback
Improved operational safety
After installation of the Glory Rail system, the ship’s deck crane achieved smooth and stable rail travel. The rubber cushioning system effectively absorbed heavy dynamic impacts, eliminating risks such as rail deformation and crane derailment, fully meeting marine operational safety standards.
Significant reduction in maintenance cost
The three-layer marine anti-corrosion system greatly extended the service life of the rail system. Compared with the original simple coating, maintenance and replacement cycles were significantly reduced, lowering both downtime and operational costs.
5. Project Summary
The crane rail system on deck is a critical load-bearing foundation for ship-based cargo handling equipment. Rail compatibility, fastening systems, and corrosion protection directly determine operational safety and equipment lifespan.
In this Pakistan A45 ship crane rail replacement project, Glory Rail delivered a fully integrated solution, standardized marine anti-corrosion engineering, and one-stop export service. The system successfully solved the aging and failure issues of the original rail system and established a replicable benchmark project for ship crane rail upgrades in South Asia.
